Digital video microscope AM4115ZTL - EDGE

inspectionpolarizedportable

Overview

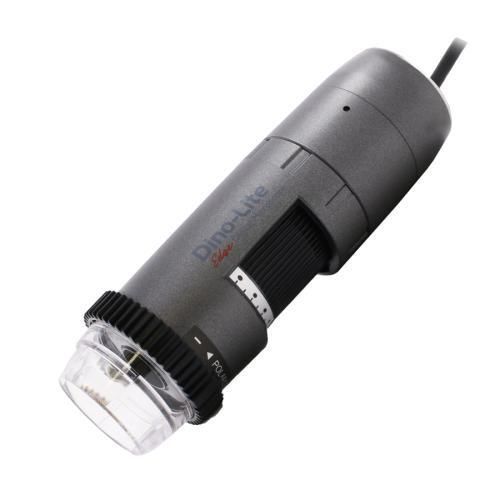

The Dino-Lite AM4115ZTL - EDGE is a portable digital microscope offering 10–140x magnification, a large field of view and an extended working distance (up to 234.5 mm). It is designed for inspection and for tasks that require space between the device and the object, such as repair, rework and assembly operations.

Optical / Imaging features
The unit integrates an adjustable linear polarizer to reduce glare and reflections on shiny surfaces. White LED illumination (8 LEDs) is switchable and a diffuser (N3C-D) is included. The glass lens has anti-reflection coating and the sensor is a 1.3 MP CMOS supporting up to 30 fps; interface via USB 2.0 (DirectShow, UVC). Measurement and calibration functions are supported via DinoCapture/DinoXcope software.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O Open cap
• N3C-C Closed cap
• N3C-D Diffuser cap
• N3C-E Extension cap
• N3C-L Long cap
• N3C-S Side light cap

Notes
Listed optical values may differ slightly. *With front cap. Unit = mm.

Technical specifications

• Product code: AM4115ZTL
• Brand: Dino-Lite
• Magnification: 10x ~ 140x
• Working distance: long (up to 234.5 mm at 10x)
• Lens: Glass with anti-reflection coating
• Polarizer: Yes, linear (adjustable)
• Illumination: 8 white LEDs, on/off; diffuser included (N3C-D)
• Infrared filter: IR cut-filter > 650 nm
• Sensor: CMOS 1.3 MP (1280 x 1024), max 30 fps
• Interface: USB 2.0 (DirectShow, UVC)
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• Housing: Composite / plastic
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 105 g; Cable: 1.8 m
• Regulatory: CE, FCC, ROHS
• Warranty: 2 years European warranty
• Price range (informational): €600.00 - €800.00
