Digital video microscope AM7515MT8A

inspectionfor nanocharacterizationfor materials research

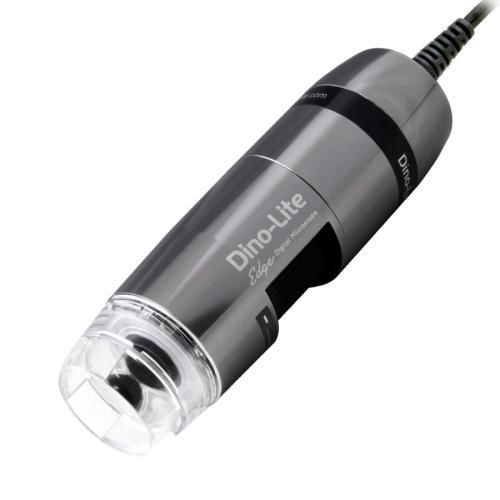

Overview The Dino-Lite AM7515MT8A is a 5MP Edge Series digital microscope providing 700-900x magnification with integrated coaxial illumination. Flexible LED Control (FLC) allows switching or mixing of coaxial and brightfield lighting. Automatic Magnification Reading (AMR) displays the current magnification in the included software, facilitating precise inspection of wafers, microchips and other microelectronics.

Key features

• Sensor: 5.0 MP CMOS (2592 x 1944)
• Magnification range: 700x – 900x
• Integrated coaxial illumination
• Flexible LED Control (FLC) — switch or mix coaxial and brightfield
• Automatic Magnification Reading (AMR)
• Maximum frame rate: 30 fps (video recording up to 20 fps)
• Microtouch sensor and ESD-safe design
• Metal housing with magnification lock, dimensions 10.7 cm x 3.2 cm, weight 139 g, cable length 1.8 m

Optical data

• 700 — Working distance 6.4 mm — FOV X 0.56 mm — FOV Y 0.400 mm — DOF 0.01 mm
• 750 — Working distance 6.3 mm — FOV X 0.52 mm — FOV Y 0.375 mm — DOF 0.01 mm
• 800 — Working distance 6.1 mm — FOV X 0.48 mm — FOV Y 0.350 mm — DOF 0.009 mm
• 850 — Working distance 6.0 mm — FOV X 0.46 mm — FOV Y 0.330 mm — DOF 0.009 mm
• 900 — Working distance 5.9 mm — FOV X 0.43 mm — FOV Y 0.315 mm — DOF 0.008 mm

Applications

• Microelectronics inspection (wafers, microchips)
• Material analysis and surface inspection
• Quality control, failure analysis and R&D

Compatibility & software

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; macOS 10.12 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)

Package & warranty

• Includes: microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover, box
• Recommended accessory: high-precision stand (e.g., Dino-Lite RK-10A) for stable focusing at high magnification
• Warranty: 2 years (European warranty). Regulatory approvals available on request (CE, UKCA)
