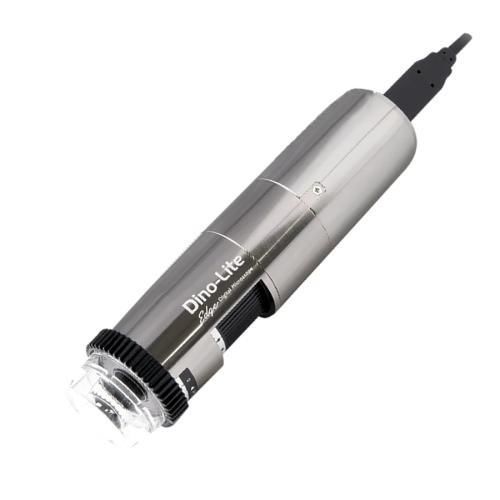

Microscope camera module AG5715MZTL

inspectionfor microscopydigital

Overview
The AG5715MZTL is a long working distance digital inspection microscope camera with a global shutter sensor for distortion-free live imaging of moving subjects. External and software triggers enable synchronized capture in automated inspection setups (sensor‑triggered stations, robotic systems). Triggered flash and strobe output support well-timed frame acquisition in dynamic inspection environments. Equipped with a 2.0 MP sensor, 10x–140x magnification range, AMR and EDR tools, it is designed for trigger‑based imaging where extended working distance is required.

Key Features

• Global shutter sensor
• Long working distance optics (LWD)
• 2.0 Megapixel (1920 x 1080)
• Magnification 10x–140x with magnification lock
• Software trigger and external trigger
• Strobe output and LED flash mode
• Enhanced Flexible LED Control (eFLC)
• Adjustable polarizer
• Extended Dynamic Range (EDR)
• Automatic Magnification Readout (AMR)
• Measurement and calibration functions
• Metal housing, compact (130 mm x 33 mm)

Optical Data Table
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
10x | 230.0 | 60.70 | 34.14 | 24.34
20x | 111.3 | 30.35 | 17.07 | 6.52
30x | 73.2 | 20.23 | 11.38 | 3.09
40x | 55.3 | 15.17 | 8.54 | 1.86
50x | 45.4 | 12.14 | 6.83 | 1.27
60x | 39.5 | 10.12 | 5.69 | 0.94
70x | 35.9 | 8.67 | 4.88 | 0.73
80x | 33.8 | 7.59 | 4.27 | 0.59
90x | 32.6 | 6.74 | 3.79 | 0.49
100x | 32.1 | 6.07 | 3.41 | 0.42
110x | 32.1 | 5.52 | 3.10 | 0.36
120x | 32.4 | 5.06 | 2.85 | 0.32
130x | 33.1 | 4.67 | 2.63 | 0.28
140x | 33.9 | 4.34 | 2.44 | 0.25
* Without front cap (units: mm)

Specification Summary

• Lighting: Stroboscopic LED, 8 LEDs; Polarizer: yes (adjustable)
• Optics: Magnification 10x ~ 140x, long working distance, global shutter optics
• Sensor: CMOS, 2.0 MP (1920 x 1080), max 30 fps
• Interface: USB 2.0; OS compatibility: Windows 10/11; Software: DinoCapture 2.0 / 3.0 (Windows)
• Supported image formats (Windows): BMP, PNG, TIF, JPG; Video formats: WMV, FLV, SWF (DinoCapture 2.0), MP4 (DinoCapture 3.0)
• Housing: Metal; Magnification lock: yes; Dimensions: 130 mm (H) x 33 mm (D); Weight: approx. 120 g
• Cables: Type‑C to Type‑C (screw lock, 1.8 m) and Type‑C to Type‑A (screw lock, 1.8 m)
• Features: eFLC, EDR, AMR, software trigger, external trigger, LED flash mode, strobe output
• Measurement & calibration: yes; Microtouch sensor: yes

Package & Compliance

• Package contents: Microscope, carry pouch, N3C-C, N3C-D, N3C-D2, N3C-E, N3C-L, N3C-O, N3C-S
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €1,200.00 – €1,400.00
