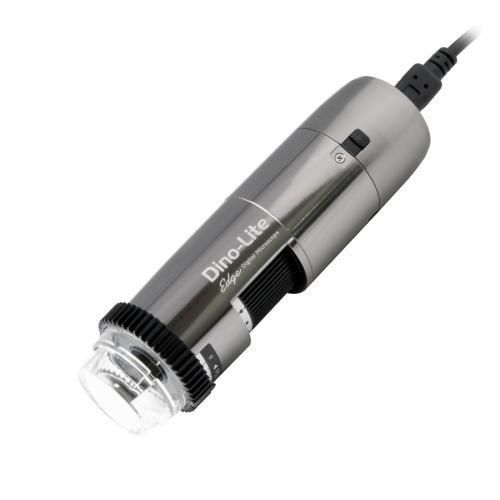

Digital video microscope AF7115MZTW

inspectionlaboratoryfor research

Overview
The AF7115MZTW is a compact digital inspection microscope designed for macro-level visual inspection and documentation. Equipped with a 5.0 MP CMOS sensor, adjustable linear polarizer and Flexible LED Control (FLC), it is suitable for industrial inspection, quality control and laboratory use. The unit is wireless-ready with the optional WF-20 adapter and features an ESD-safe metal housing.

Main features

• 5.0 Megapixel sensor (2592 x 1944) with up to 30 fps
• Macro zoom optics, magnification range 10x–50x
• Adjustable linear polarizer to reduce reflections
• Flexible LED Control (FLC) with 8 white LEDs and switchable on/off
• Diffuser included (N3C-D) and multiple front caps for lighting control
• USB 2.0 interface, UVC / DirectShow compatible
• Measurement and calibration functions supported
• Microtouch sensor, ESD-safe design and magnification lock
• Compact metal housing: 15 mm (H) x 34 mm (D); weight 97 g; 1.8 m cable

Optical Data — T Zone
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
T Zone
50 | 23 | 8 | 6 | 4
40 | 43 | 10 | 7 | 6
30 | 43 | 13 | 10 | 11
20 | 128 | 20 | 15 | 27
15 | 183 | 26 | 20 | 48
Unit = mm

Optical Data — W Zone
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
W Zone
30 | 19 | 13 | 10 | 7
20 | 33 | 20 | 15 | 7
15 | 47 | 26 | 20 | 25
10 | 76 | 40 | 30 | 57
5 | 163 | 79 | 59 | 297
Unit = mm

Package contents

• Microscope AF7115MZTW
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O Open cap
• N3C-C Closed cap
• N3C-D Diffuser cap
• N3C-E Extension cap
• N3C-L Long cap
• N3C-S Side light cap

Technical specifications

• Sensor type: CMOS, resolution 2592 x 1944 (5.0 MP)
• Maximum frame rate: 30 fps
• Optics: Glass lens with anti-reflection coating
• Magnification: 10x–50x; macro-level imaging with zoom capability
• Lighting: 8 white LEDs, FLC dimming, diffuser included, no emission filter
• Polarizer: Adjustable linear polarizer
• Interface: USB 2.0 (UVC/DirectShow)
• OS compatibility: Windows 7/8/10/11, MacOS 10.14+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC; Wi‑Fi: WF-20 adapter (optional)
• Housing: Metal, ESD-safe; magnification lock
• Dimensions / Weight / Cable: 15 mm (H) x 34 mm (D) / 97 g / 1.8 m
• Regulatory: CE, FCC, ROHS; Warranty: 2 years (Europe)
• Indicative price range: €900.00 - €1100.00
