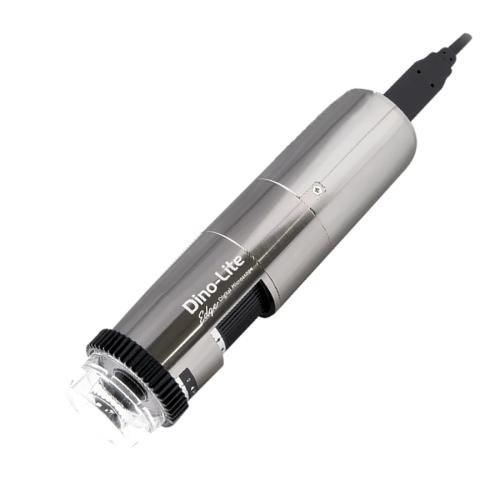

Digital video microscope AM62118MZTL

laboratoryhand-heldportable

Overview
The Dino-Lite AM62118MZTL is a long working distance digital microscope offering 10x–140x magnification with switchable 1080p HDMI output or 2 MP USB‑C output. HDMI mode delivers smooth real‑time imaging on an external display; USB mode enables PC capture and advanced measurement using DinoCapture/DinoXcope software. Note: HDMI and USB modes are not simultaneous.

Main features

• Switchable HDMI (1080p) and USB‑C (2.0 MP) outputs
• 10x–140x macro zoom with long working distance (LWD)
• 8 white LEDs with Enhanced Flexible LED Control (eFLC)
• Adjustable polarizer for glare reduction and contrast control
• Microtouch sensor for capture convenience
• Durable metal housing and compact dimensions

Optical Data Table
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
10x | 238.2 | 60.69 | 34.14 | 22.95
20x | 115.4 | 30.35 | 17.07 | 6.31
30x | 75.8 | 20.23 | 11.38 | 3.06
40x | 57.1 | 15.17 | 8.53 | 1.86
50x | 46.7 | 12.14 | 6.83 | 1.28
60x | 40.5 | 10.11 | 5.69 | 0.95
70x | 36.6 | 8.67 | 4.88 | 0.75
80x | 34.2 | 7.59 | 4.27 | 0.61
90x | 32.9 | 6.74 | 3.79 | 0.51
100x | 32.2 | 6.07 | 3.41 | 0.43
110x | 32.0 | 5.52 | 3.10 | 0.38
120x | 32.2 | 5.06 | 2.85 | 0.33
130x | 32.8 | 4.67 | 2.63 | 0.30
140x | 33.5 | 4.34 | 2.44 | 0.27

Specification

• Brand: Dino-Lite
• Model: AM62118MZTL
• Magnification range: 10x – 140x (macro zoom)
• Working distance: Long working distance (LWD)
• Sensor: CMOS, 2.0 Megapixels (1920 x 1080)
• Maximum frame rate: 30 fps at 2.0 MP (MJPEG)
• Lighting: 8 white LEDs, Enhanced Flexible LED Control (eFLC), adjustable polarizer
• Outputs / Interface: Switchable HDMI (1080p) or USB‑C (2.0 MP)
• Housing: Metal; Dimensions 130 mm (H) x 33 mm (D); Weight 120 g
• Included cables: Type-C to Type-C (1.8 m), Type-C to Type-A (1.8 m), Mini‑HDMI to HDMI (1.8 m)
• Special features: Microtouch sensor

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• User manual
• Multiple caps: N3C-C, N3C-D, N3C-D2, N3C-E, N3C-L, N3C-O, N3C-S
• Cables as listed in specifications

Compliance & warranty

• Warranty: 2 years (Europe)
• Regulatory approvals: CE, FCC, RoHS
• Price range (excl. VAT): €1000.00 - €1200.00
