Overview

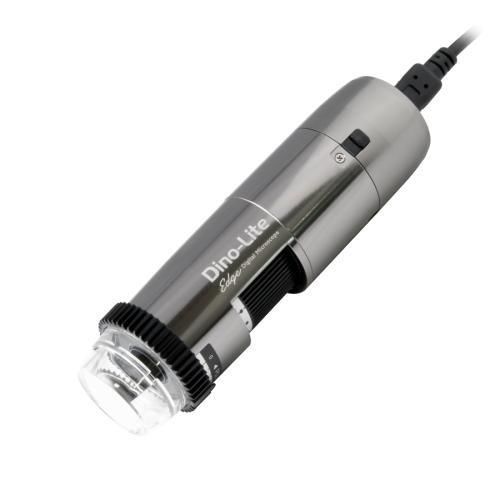

The Dino-Lite AF7915MZTL belongs to the Long Working Distance (LWD) series. With a working distance optimized for inspection tasks and a magnification range of 10–140×, it is suited for applications that require extra clearance from the object or a larger field of view, such as electronics inspection, materials analysis and quality control.

Main features

• 5 MP Edge CMOS sensor (2592×1944)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• 10–140× magnification
• Long working distance
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs
• Wireless-ready (requires optional WF-20)

Notes
EDR (Extended Dynamic Range) reveals details in very dark or very bright areas by stacking images at different exposure levels. EDOF (Extended Depth of Field) automatically stacks images at different focus levels to increase apparent depth of field on rough or uneven surfaces. AMR provides automatic magnification readout for measurement workflows. The built-in adjustable polarizer reduces reflections on shiny or reflective samples such as metal, plastic, glass, jewelry and electronics. EDOF and EDR functions are available only under Windows operating systems.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09
*Without front cap. Unit = mm

Technical specifications

• Brand: Dino-Lite
• Model: AF7915MZTL
• Lighting: White LED, 8 LEDs; LED on/off switchable; diffuser included (N3C-D); IR cut-filter >650 nm; emission filter: no
• Polarizer: Integrated linear, adjustable
• Optics: 10×–140× magnification; glass lens with anti-reflection coating; long working distance
• Sensor: CMOS, 5.0 MP (2592×1944); max 30 fps
• Interface: USB 2.0
• Compatibility: Windows 7/8/10/11; MacOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF; (MacOS image/video support: JPEG, PNG; MOV up to 1.3MP)
• Imaging standards: DirectShow, UVC
• Wireless: Wireless-ready (WF-20 optional)
• Housing: Metal
• Dimensions: 115 mm (L) × 34 mm (D)
• Weight: 97 g
• Cable length: 1.8 m
• Special functions: AMR, EDR, EDOF, FLC; measurement and calibration supported; microtouch sensor; ESD safe
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (long cap), N3C-S (side light cap)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range indicated: €1,100.00 - €1,300.00
