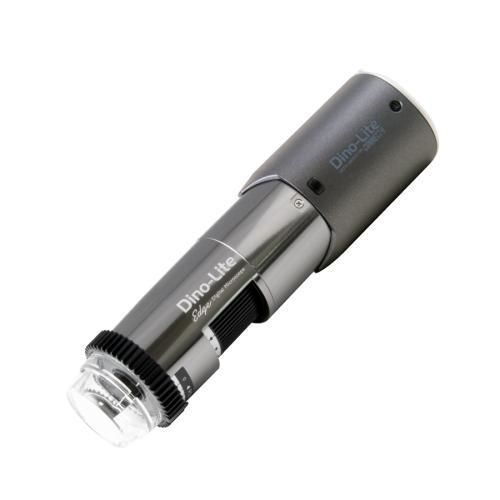

Digital video microscope WF7915MZTL

inspectionLEDwhite light

Product overview
The WF7915MZTL is a long working distance (LWD) digital inspection microscope with a 5.0 MP Edge sensor and a 10–140x zoom range. It is intended for industrial inspection, quality control and failure analysis where extra clearance from the object or a larger field of view is required.

Main features

• 5 Megapixel Edge CMOS sensor (2592x1944)
• Magnification: 10x ~ 140x
• Long working distance (LWD)
• Extended Depth of Field (EDOF) — focus stacking
• Extended Dynamic Range (EDR) — exposure stacking
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer for reflections
• Flexible LED Control (FLC) — 8 white LEDs, on/off switchable
• USB 2.0 (cable) and wireless (WiFi) capability
• Metal housing, ESD safe

Function details
EDR (Extended Dynamic Range) reveals detail in very bright or dark areas by stacking images captured at different exposure levels. EDOF (Extended Depth of Field) automatically stacks images at different focus planes to increase usable depth of field on rough or uneven surfaces. AMR (Automatic Magnification Reading) provides automatic magnification detection to simplify measurement workflows. The integrated adjustable polarizer reduces glare from shiny materials such as metal, plastic, glass, jewelry and electronic components. EDOF and EDR functions are available under Windows; some functions are limited on macOS (cable only).

Optical Data Table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09
*Without front cap — Unit = mm

Technical specifications

• Lighting: White LED, 8 LEDs, LED on/off switchable
• IR filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Yes, linear (adjustable)
• Magnification: 10x ~ 140x
• Lens type: Glass with anti-reflection coating
• Sensor type: CMOS; Resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0; WiFi supported
• Operating systems: Windows 7/8/10/11 (full feature set); macOS 10.11.6+ (cable only, some limits)
• Software: DinoCapture 2.0 (Windows) cable + wireless; DinoXcope (macOS) cable only; DinoConnect (wireless only)
• Supported formats: Images and video formats vary by OS (see product datasheet)
• Housing material: Metal; ESD safe
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 137 g; Cable length: 1.8 m
• Special features: AMR, EDR, EDOF, FLC, measurement and calibration functions, microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O/C/D/E/L/S caps
• Warranty: 2 years European warranty; Approvals: CE, FCC, ROHS
• Indicative price range: €1500.00 - €1700.00
