Digital video microscope AM4517MT-FUW

inspectionfor forensicsfluorescence

Description

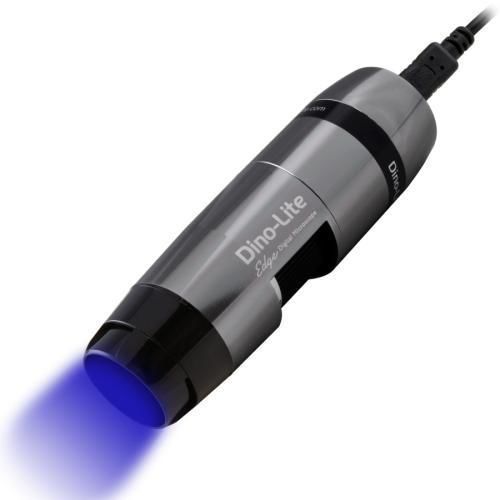

Equipped with a 375 nm UV light and a switchable white light, the Dino-Lite EdgePLUS AM4517MT-FUW high-sensitivity digital microscope highlights UV features in paintings, trace evidence and security-printed documents. Designed for inspection, forensic and quality-control tasks, it combines a compact metal housing with Automatic Magnification Readout (AMR) and measurement functions.

Main features

• UV illumination (375 nm) plus switchable white LEDs
• High-sensitivity CMOS sensor (1.3 MP, 1280x960) at up to 30 fps
• Wide magnification range: 10x–220x with AMR
• Adjustable LED intensity and magnification lock
• Metal housing, microtouch sensor and calibration capability

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 59.8 | 19.53 | 14.65 | 7.05
30 | 33.1 | 13.02 | 9.77 | 3.36
40 | 20.5 | 9.77 | 7.32 | 2.02
50 | 13.4 | 7.81 | 5.86 | 1.38
60 | 9.2 | 6.51 | 4.88 | 1.01
70 | 6.7 | 5.58 | 4.19 | 0.79
80 | 5.1 | 4.88 | 3.66 | 0.64
90 | 4.1 | 4.34 | 3.26 | 0.53
100 | 3.7 | 3.91 | 2.93 | 0.45
110 | 3.6 | 3.55 | 2.66 | 0.39
120 | 3.7 | 3.26 | 2.44 | 0.34
130 | 4.1 | 3.01 | 2.25 | 0.30
140 | 4.5 | 2.79 | 2.09 | 0.27
150 | 5.2 | 2.6 | 1.95 | 0.25
160 | 5.9 | 2.44 | 1.83 | 0.22
170 | 6.7 | 2.3 | 1.72 | 0.21
180 | 7.5 | 2.17 | 1.63 | 0.19
190 | 8.5 | 2.06 | 1.54 | 0.18
200 | 9.4 | 1.95 | 1.46 | 0.16
210 | 10.5 | 1.86 | 1.40 | 0.15
220 | 11.5 | 1.78 | 1.33 | 0.14

Specification (lighting / optics / sensor / compatibility / housing / features / information)
Lighting

• Light / LED type: UV Light (375 nm) and switchable white LEDs
• Number of LEDs: 4 white + 4 UV
• LED on/off switchable: Yes
• Infrared filter: No
• Diffuser available: No
• Polarizer: No
• Fluorophores supported: GFP, FITC, YFP

Optics

• Magnification: 10x–220x (automatic readout via AMR)
• Working distance: Standard (see optical data table for values by magnification)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x960)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11, MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (Mac): JPEG, PNG
• Supported video formats (Mac): MOV

Housing

• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 104 mm (H) x 32 mm (Ø)
• Weight: 92 g
• Cable length: 1.8 m

Features

• Automatic Magnification Readout (AMR)
• Measurement and calibration functions
• Microtouch sensor
• Scroll/magnification lock

Information

• Package contents: Microscope, carry pouch, calibration target, user manual, caps: N3C-C, N3C-EB, N3C-LB, N3C-OB
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS

Characteristics / technical specifications

• Model: AM4517MT-FUW
• Brand / Series: Dino-Lite (EdgePLUS)
• Light / LED type: UV 375 nm + switchable white LEDs (4 UV + 4 white)
• Magnification range: 10x–220x
• Sensor: CMOS 1.3 MP (1280x960), up to 30 fps
• Interface: USB 2.0
• Lens: Glass with anti-reflection coating
• Housing: Metal; Dimensions/Weight: 104 mm x 32 mm / 92 g
• Cable length: 1.8 m
• Special features: AMR, measurement, calibration, microtouch sensor, magnification lock
• Fluorophores supported: GFP, FITC, YFP
• Package: See package contents
• Warranty & regulatory: 2 years (Europe); CE, FCC, ROHS
