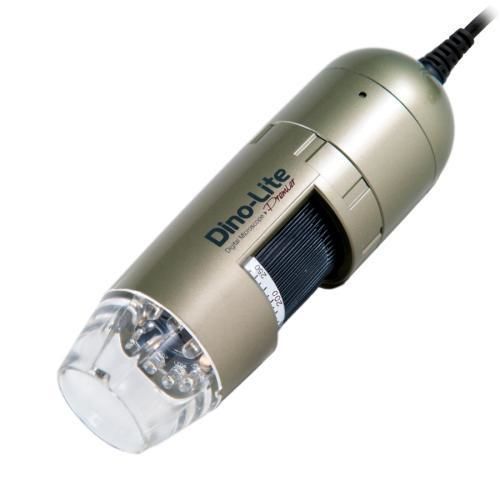

Digital video microscope AM3713TB

for biologyinspectionlaboratory

Product description
The Dino-Lite AM3713TB is a USB digital microscope featuring a stroboscopic LED light to minimize motion blur when imaging fast-moving objects at high magnification. It offers 10x–70x continuous magnification plus a 200x option, VGA resolution and a high refresh rate for clear observation and analysis.

Applications
Suitable for production-line inspection, quality control, laboratory observation of living samples and any application that requires imaging of rapid motion. Portable and USB-powered, it integrates measurement and calibration functions to support inspection workflows.

Stroboscopic performance

• Effective stroboscopic range: 3 cm to 15 cm
• Optimal under low ambient light (best below 20 LUX)
• Not effective above 80 LUX

Optical Data Table
Unit = mm
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 51.7 | 21.0 | 15.7 | 8
30 | 24.1 | 14.0 | 10.5 | 4
40 | 11.0 | 10.5 | 7.9 | 2.5
50 | 3.8 | 8.4 | 6.3 | 2
60 | -0.6 | 7.0 | 5.2 | -
200 | -0.4 | 2.1 | 1.6 | 0.45
210 | 0.6 | 2.0 | 1.5 | -
220 | 1.7 | 1.9 | 1.4 | -
230 | 2.8 | 1.8 | 1.4 | 0.42

Specification
Lighting
Light / LED type: Stroboscopic
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Emission filter: No
Polarizer: No

Optics
Magnification: 10x–70x, 200x option
Macro zoom: No
Working distance: Standard (see optical table)
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: VGA (640x480)
Maximum frame rate: 60 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11
Software: DinoCapture 2.0 (Windows)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Imaging standards: DirectShow, UVC
WiFi: No

Housing
Housing material: Composite / plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 105 g
Cable length: 1.8 m

Features
Special feature: Stroboscopic LED
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No

Information
Package contents: Microscope, carry pouch, software CD, calibration target, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €200,00 - €350,00

Technical specifications

• Model: AM3713TB
• Brand: Dino-Lite
• Light type: Stroboscopic LED (8 LEDs)
• Magnification: 10x–70x and 200x
• Optical data: see Optical Data Table (unit = mm)
• Sensor: CMOS, VGA 640x480
• Maximum frame rate: 60 fps
• Interface: USB 2.0
• Operating systems supported: Windows 7, 8, 10, 11
• Software: DinoCapture 2.0 (Windows)
• Lens: Glass with anti-reflection coating
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
