Digital video microscope AM4115-FJT

inspectioninfraredLED

Product overview

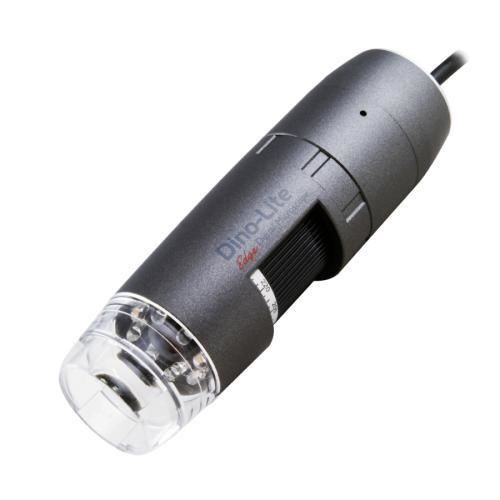

The Dino-Lite AM4115-FJT is a USB digital microscope designed for infrared imaging. It features switchable ~940 nm IR LEDs and an IR-pass filter for imaging under infrared illumination. The Edge cap design provides flexibility for close inspection and varied working distances.

Key features

• Special IR illumination: ~940 nm, 8 LEDs, switchable
• Magnification range: 20x – 220x (glass lens with anti-reflection coating)
• Sensor: CMOS 1.3 MP (1280x1024), up to 30 fps
• Interface: USB 2.0, DirectShow / UVC compatible
• Measurement and calibration support; magnification lock and Microtouch sensor

Optical data (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 mm | 19.5 mm | 15.6 mm | 2.5 mm
30 | 33.5 mm | 13.0 mm | 10.4 mm | 1.8 mm
40 | 20.9 mm | 9.8 mm | 7.8 mm | 1.5 mm
50 | 13.9 mm | 7.8 mm | 6.3 mm | -
60 | 9.7 mm | 6.5 mm | 5.2 mm | -
70 | 7.1 mm | 5.6 mm | 4.5 mm | 1.0 mm
80 | 5.5 mm | 4.9 mm | 3.9 mm | -
90 | 4.5 mm | 4.3 mm | 3.5 mm | -
100 | 4.1 mm | 3.9 mm | 3.1 mm | -
110 | 4.0 mm | 3.6 mm | 2.8 mm | -
120 | 4.1 mm | 3.3 mm | 2.6 mm | -
130 | 4.5 mm | 3.0 mm | 2.4 mm | -
140 | 5.0 mm | 2.8 mm | 2.2 mm | -
150 | 5.6 mm | 2.6 mm | 2.1 mm | -
160 | 6.3 mm | 2.4 mm | 2.0 mm | -
170 | 7.1 mm | 2.3 mm | 1.8 mm | -
180 | 8.0 mm | 2.2 mm | 1.7 mm | -
190 | 8.9 mm | 2.1 mm | 1.6 mm | -
200 | 9.9 mm | 2.0 mm | 1.6 mm | -
210 | 10.9 mm | 1.9 mm | 1.5 mm | -
220 | 11.9 mm | 1.8 mm | 1.4 mm | 0.1 mm

Specifications (summary)

• Lighting: ~940 nm infrared LEDs (8), LED on/off switchable, IR pass filter
• Optics: 20x–220x, glass lens with anti-reflection coating, magnification lock
• Sensor: CMOS 1.3 MP (1280x1024), max 30 fps
• Interface & compatibility: USB 2.0, DirectShow/UVC; Windows 7/8/10/11 and macOS 10.9+; DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards & formats: Windows image/video formats and Mac formats supported (see technical documentation)

Mechanical & features

• Housing: composite/plastic; dimensions: 10.5 cm (L) x 3.2 cm (D); weight: 100 g; cable length: 1.8 m
• Measurement & calibration supported; Microtouch sensor included; not ESD-safe
• Wireless-ready with optional WF-10 WiFi streamer

Package, warranty & compliance

• Package content: microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €500.00 - €700.00
