Digital video microscope AM4517MZT

inspectionpolarizinghand-held

Overview

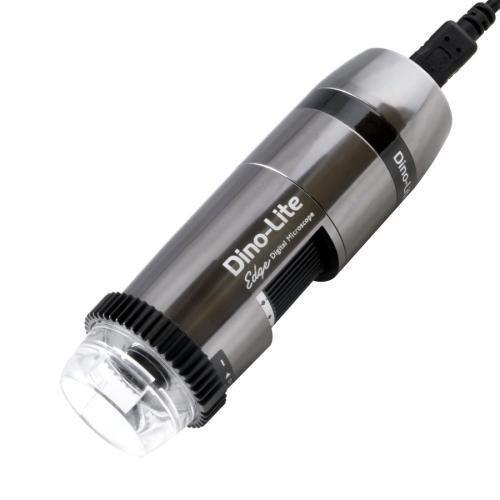

The Dino-Lite AM4517MZT is an EDGE PLUS digital microscope for inspection, measurement and documentation of reflective and detailed surfaces. It integrates a 1.3 Megapixel sensor, 10–220x magnification range, adjustable linear polarizer, USB 2.0 connectivity and a metal housing suited to industrial environments.

Key features

• 1.3 Megapixel EDGE PLUS sensor (1280x960)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Magnification: 10x – 220x
• Built-in linear polarizer
• 30 fps maximum frame rate
• Metal housing; magnification lock
• Diffuser N3C-D included; multiple front caps supplied

AMR — Automatic Magnification Reading
The AMR function detects and records the current magnification within the Dino-Lite software and stores the value with captured images to simplify measurement and traceability.

Working distance / Field of view / Depth of field (mm)
20 — 59.5 — 19.5 — 14.7 — 5.36
30 — 32.9 — 13.0 — 9.8 — 2.58
40 — 20.2 — 9.8 — 7.3 — 1.56
50 — 13.2 — 7.8 — 5.9 — 1.07
60 — 9.0 — 6.5 — 4.9 — 0.79
70 — 6.4 — 5.6 — 4.2 — 0.62
80 — 4.8 — 4.9 — 3.7 — 0.50
90 — 4.0 — 4.3 — 3.3 — 0.42
100 — 3.5 — 3.9 — 2.9 — 0.36
110 — 3.3 — 3.6 — 2.7 — 0.31
120 — 3.5 — 3.3 — 2.4 — 0.27
130 — 3.8 — 3.0 — 2.3 — 0.24
140 — 4.3 — 2.8 — 2.1 — 0.22
150 — 4.9 — 2.6 — 2.0 — 0.20
160 — 5.6 — 2.4 — 1.8 — 0.18
170 — 6.4 — 2.3 — 1.7 — 0.17
180 — 7.3 — 2.2 — 1.6 — 0.15
190 — 8.2 — 2.1 — 1.5 — 0.14
200 — 9.2 — 2.0 — 1.5 — 0.13
210 — 10.2 — 1.9 — 1.4 — 0.13
220 — 11.3 — 1.8 — 1.3 — 0.12
(Listed values may differ slightly)
(*Without front cap)

Optics and lighting

• Light: White LEDs, 8 LEDs, LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Yes, linear, adjustable
• Lens: Glass with anti-reflection coating; no macro zoom
• Working distance: Standard (see table above)

Sensor & performance

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x960)
• Maximum frame rate: 30 fps
• Imaging standards: DirectShow, UVC

Compatibility & software

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 11.1 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF (max 1.3MP)
• Supported image/video formats (MacOS): JPEG, PNG, MOV

Mechanical & package

• Housing: Metal
• Dimensions: 10.5 cm (L) x 3.3 cm (D); Weight: 90 g; Cable length: 1.5 m
• Package contents: Microscope, carry pouch, software CD, manual, quick guide, calibration target, front caps (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Special functions: Measurement & calibration, Microtouch sensor, ESD safe, Flexible LED Control (FLC)
• Connectivity option: Wireless-ready with optional WF-10 WiFi streamer
• Warranty: 2 years (European)
• Certifications: CE, FCC, ROHS
• Indicative price range: €900.00 - €1100.00
