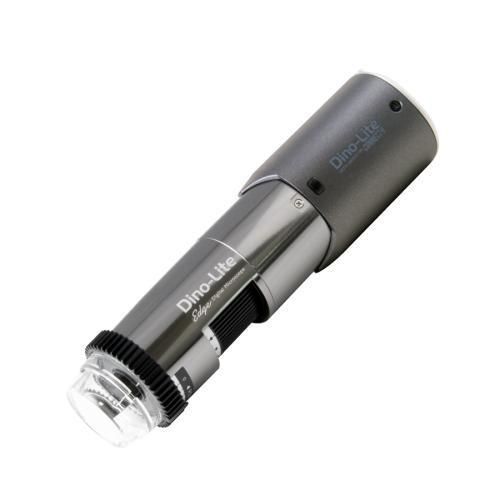

Digital video microscope WF7515MZTL

inspectionpolarizedhand-held

Summary
The Dino-Lite WF7515MZTL is a long-working-distance digital microscope featuring a 5 megapixel sensor, Flexible LED Control (FLC), integrated polarizer and an all-aluminum housing. Designed for industrial inspection, repair and assembly tasks, it delivers accurate color reproduction and a wide field of view across 10–140x magnification.

Applications / Overview
Part of the Long Working Distance (LWD) range, the WF7515MZTL is suited for inspections where extra distance to the object or a larger field of view is required. Typical uses include electronics inspection, repair and rework, quality control, assembly of bulky or fragile parts, and inspection of reflective materials (metal, plastic, glass, jewelry). The built-in polarizer reduces glare on shiny surfaces. Automatic Magnification Reading (AMR) supports repeatable measurement workflows.

Main features

• 5 Megapixel Edge sensor (2592×1944)
• Long Working Distance (LWD)
• Magnification range: 10–140x
• Integrated linear polarizer
• Aluminum / metal housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC), 8 white LEDs (on/off)
• Extensive measurement and calibration functions
• Exchangeable front caps (multiple types included)
• Wireless capable (Wi‑Fi) and USB 2.0 support

Optical Data Table (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 mm | 39.0 mm | 31.2 mm | 12 mm
20 | 112.5 mm | 19.5 mm | 15.6 mm | 4.5 mm
30 | 72.5 mm | 13.0 mm | 10.4 mm | 3.1 mm
40 | 54.5 mm | 9.8 mm | 7.8 mm | 1.8 mm
50 | 43.5 mm | 7.8 mm | 6.2 mm | 1.2 mm
60 | 37.5 mm | 6.5 mm | 5.2 mm | 0.9 mm
70 | 33.7 mm | 5.6 mm | 4.5 mm | 0.6 mm
80 | 31.3 mm | 4.9 mm | 3.9 mm | 0.5 mm
90 | 29.9 mm | 4.3 mm | 3.5 mm | 0.37 mm
100 | 29.2 mm | 3.9 mm | 3.1 mm | 0.28 mm
110 | 29.1 mm | 3.5 mm | 2.8 mm | 0.22 mm
120 | 29.3 mm | 3.3 mm | 2.6 mm | 0.17 mm
130 | 29.8 mm | 3.0 mm | 2.4 mm | 0.12 mm
140 | 30.5 mm | 2.8 mm | 2.2 mm | 0.09 mm

Technical specifications (key)

• Lighting: 8 white LEDs, LED on/off switchable; diffuser (N3C-D) included; IR cut-filter >650 nm; linear polarizer
• Optics: 10×–140× magnification, glass lens with anti-reflection coating, long working distance
• Sensor: CMOS, 5.0 Megapixel (2592×1944), max 30 fps
• Interface & software: USB 2.0; Wi‑Fi capable; DinoCapture 2.0 (Windows, cable + wireless), DinoXcope (Mac, cable), DinoConnect (wireless)
• Formats & standards: Multiple image/video formats supported (see manufacturer); DirectShow, UVC
• Housing & dimensions: Metal housing, magnification lock, 10.5 cm (L) × 3.2 cm (D), weight 135 g, cable 1.8 m
• Features: AMR, FLC, measurement functions, calibration, microtouch sensor, ESD safe
• Package contents: Microscope, carry pouch, software CD, calibration target, manual, N3C caps (O, C, D, E, L, S)
• Warranty & compliance: 2 years European warranty; CE, FCC, RoHS
• Indicative price range: €1,400–€1,600

Note
Optical table values are measured without front cap and may vary slightly in practice.
