Digital video microscope AF4535ZTE

inspectionpolarizedLED

Product overview

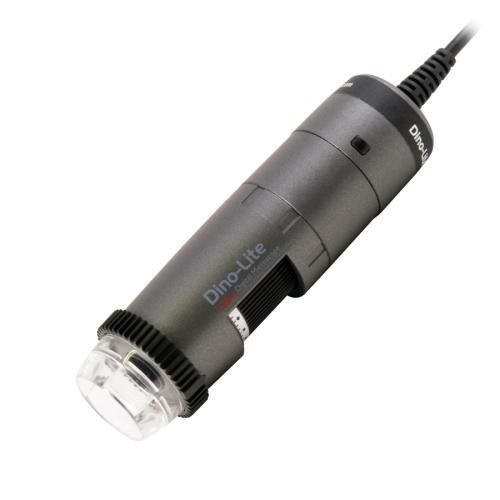

The Dino-Lite AF4535ZTE is a USB digital microscope designed for inspection and measurement tasks. It is wireless-ready (requires optional WF-20 adapter) and belongs to the Universal AF4x35 series, offering a wide working distance range and higher maximum magnifications compared with AM4x15 models.

Main features

• Wireless-ready (requires WF-20 adapter, optional)
• Magnification: 10x ~ 330x
• Sensor: 1.3 Megapixel EDGE (1280 x 1024), CMOS
• Adjustable linear polarizer to reduce reflections
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) — 8 white LEDs, LED on/off switchable
• Extensive measurement functions with calibration support
• Microtouch sensor; glass lens with anti-reflection coating

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 222.3 | 39.1 | 29.3 | 55.5
20 | 98.9 | 19.5 | 14.7 | 14.6
30 | 58.5 | 13.0 | 9.8 | 6.8
40 | 38.7 | 9.8 | 7.3 | 4.0
50 | 27.2 | 7.8 | 5.9 | 2.7
60 | 19.9 | 6.5 | 4.9 | 2.0
70 | 14.9 | 5.6 | 4.2 | 1.5
80 | 11.5 | 4.9 | 3.7 | 1.2
90 | 9.0 | 4.3 | 3.3 | 1.0
100 | 7.2 | 3.9 | 2.9 | 0.8
110 | 5.9 | 3.6 | 2.7 | 0.7
120 | 4.9 | 3.3 | 2.4 | 0.6
130 | 4.3 | 3.0 | 2.3 | 0.5
140 | 3.9 | 2.8 | 2.1 | 0.5
150 | 3.7 | 2.6 | 2.0 | 0.4
160 | 3.6 | 2.4 | 1.8 | 0.4
170 | 3.7 | 2.3 | 1.7 | 0.4
180 | 3.8 | 2.2 | 1.6 | 0.3
190 | 4.1 | 2.1 | 1.5 | 0.3
200 | 4.4 | 2.0 | 1.5 | 0.3
210 | 4.7 | 1.9 | 1.4 | 0.3
220 | 5.2 | 1.8 | 1.3 | 0.2
230 | 5.6 | 1.7 | 1.3 | 0.2
240 | 6.2 | 1.6 | 1.2 | 0.2
250 | 6.7 | 1.6 | 1.2 | 0.2
260 | 7.3 | 1.5 | 1.1 | 0.2
270 | 7.9 | 1.4 | 1.1 | 0.2
280 | 8.5 | 1.4 | 1.0 | 0.2
290 | 9.2 | 1.3 | 1.0 | 0.2
300 | 9.9 | 1.3 | 1.0 | 0.2
310 | 10.6 | 1.3 | 0.9 | 0.2
320 | 11.3 | 1.2 | 0.9 | 0.1
330 | 12.0 | 1.2 | 0.9 | 0.1

Technical specifications

• Lighting: 8 white LEDs, LED on/off switchable; IR cut-filter >650 nm; Diffuser included (N3C-D); Polarizer: linear
• Optics: Magnification 10x–330x; lens: glass with anti-reflection coating; working distance: standard
• Sensor: CMOS 1.3 MP (1280x1024); max frame rate: 30 fps
• Compatibility: USB 2.0 interface; imaging standards DirectShow, UVC; OS support: Windows 7/8/10/11, MacOS 10.14+; software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Housing & mechanics: Composite/plastic housing; dimensions 114 mm (L) x 33 mm (ø); weight 111 g; cable 1.8 m
• Features: AMR, FLC, measurement and calibration support, Microtouch sensor; ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C caps (Open/Closed/Diffuser/Extension/Long/Side light)
• Warranty & regulatory: 2 years European warranty; approvals CE, FCC, ROHS
• Price range (indicative): €550.00 - €750.00
