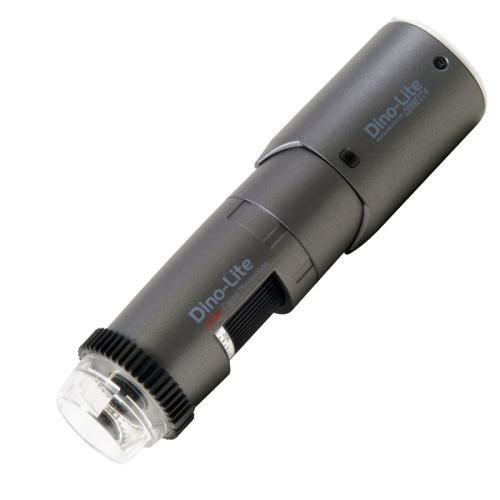

Digital video microscope WF4115ZT

inspectionpolarizinghand-held

Product overview
The Dino-Lite WF4115ZT is a wireless-capable digital microscope from the Universal series. Switch instantly between wired USB operation and wireless using the detachable WF-20 adapter. Suitable for industrial inspection, quality control and measurement tasks.

Main features

• Wireless-capable solution (WF-20 adapter included / compatible)
• 20x – 220x magnification range
• 1.3 MP CMOS sensor (1280 x 1024), up to 30 fps
• Extensive measurement functionality with calibration
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs, on/off switchable
• IR cut filter (>650 nm) and diffuser (N3C-D) included
• Microtouch sensor for easy capture

Working distance / field of view / depth of field
Note: Unit = mm, * Without front cap
MAGNIFICATION RATE | WORKING DISTANCE (mm)* | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
20 | 60.2 | 19.5 | 14.6 | 2.5
30 | 33.5 | 13.0 | 9.7 | 1.8
40 | 20.9 | 9.8 | 7.3 | 1.5
50 | 13.9 | 7.8 | 5.8 | -
60 | 9.7 | 6.5 | 4.8 | -
70 | 7.1 | 5.6 | 4.2 | 1.0
80 | 5.5 | 4.9 | 3.6 | -
90 | 4.5 | 4.3 | 3.2 | -
100 | 4.1 | 3.9 | 2.9 | -
110 | 4.0 | 3.6 | 2.7 | -
120 | 4.1 | 3.3 | 2.4 | -
130 | 4.5 | 3.0 | 2.2 | -
140 | 5.0 | 2.8 | 2.1 | -
150 | 5.6 | 2.6 | 1.9 | -
160 | 6.3 | 2.4 | 1.8 | -
170 | 7.1 | 2.3 | 1.7 | -
180 | 8.0 | 2.2 | 1.6 | -
190 | 8.9 | 2.1 | 1.5 | -
200 | 9.9 | 2.0 | 1.5 | -
210 | 10.9 | 1.9 | 1.4 | -
220 | 11.9 | 1.8 | 1.3 | 0.1

Specification (detailed)

• Lighting / LED type: White, 8 LEDs, on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: N3C-D included
• Polarizer: Adjustable linear polarizer
• Magnification: 20x ~ 220x
• Lens: Glass with anti-reflection coating
• Sensor type: CMOS, Resolution: 1.3 Megapixel (1280 x 1024), Max frame rate: 30 fps
• Interface: USB 2.0 (cable) / WiFi (with WF-20)
• Operating systems (cable): Windows 7/8/10/11, macOS 10.11.6 and up
• Software: DinoCapture 2.0 (Windows) cable + wireless, DinoXcope (Mac) cable only, DinoConnect (wireless)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF; (macOS) MOV
• Imaging standards: DirectShow, UVC; WiFi: Yes
• Housing material: Composite / plastic; Dimensions: 11.4 cm (L) x 3.3 cm (D); Weight: 111 g; Cable length: 1.8 m
• Special features: Flexible LED Control (FLC), measurement with calibration, Microtouch sensor
• ESD safe: No

Package & warranty

• Package contents: Microscope, WF-20 adapter, carry pouch, software CD, calibration target, user manual, N3C caps and accessories (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €800.00 - €1000.00
