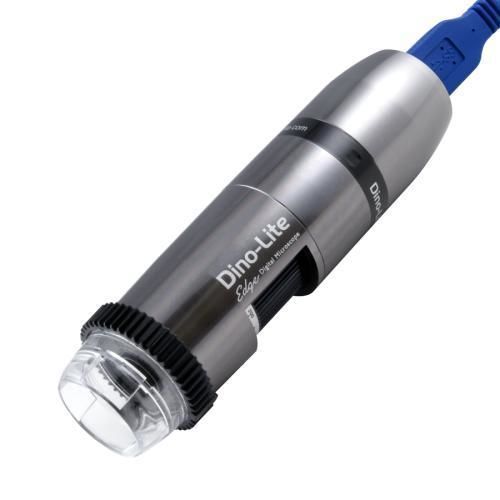

Digital video microscope AM73515MZT

inspectionpolarizedhand-held

Overview
The Dino-Lite AM73515MZT is a USB 3.0 digital microscope designed for professional inspection and measurement tasks. Featuring Edge-series optics, a 5.0 MP sensor and advanced functions such as Automatic Magnification Reading (AMR) and Flexible LED Control (FLC), it delivers precise image capture and simplified measurement workflows.

Performance and features

• USB 3.0 SuperSpeed transfer up to 5 Gbit/s enabling image capture at up to 45 FPS (1280 x 960)
• 5.0 MP CMOS sensor (2560 x 1920) for high-resolution stills
• Automatic Magnification Reading (AMR) stores magnification with captured images
• Flexible LED Control (FLC) and 8 white LEDs with on/off and diffuser options
• Built-in linear polarizer, IR cut-filter >650 nm and exchangeable front caps

Key product summary
The AM73515MZT offers a magnification range of 10x–220x with a standard working distance up to ~6 cm. It combines Dino-Lite Edge optics, a 5 MP sensor, full-metal housing, magnification lock, measurement and calibration functions, Microtouch sensor and ESD-safe design. Supplied with DinoCapture/DinoXcope software and a custom USB 3.0 cable.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 142.4 | 37.8 | 28.3 | 19.7
20 | 59.5 | 19.5 | 14.6 | 5.4
30 | 32.9 | 13.0 | 9.7 | 2.6
40 | 20.2 | 9.8 | 7.3 | 1.6
50 | 13.2 | 7.8 | 5.8 | 1.1
60 | 9.0 | 6.5 | 4.8 | 0.8
70 | 6.4 | 5.6 | 4.2 | 0.6
80 | 4.8 | 4.9 | 3.6 | 0.5
90 | 3.9 | 4.3 | 3.2 | 0.42
100 | 3.5 | 3.9 | 2.9 | 0.36
110 | 3.3 | 3.6 | 2.7 | 0.31
120 | 3.5 | 3.3 | 2.4 | 0.27
130 | 3.8 | 3.0 | 2.2 | 0.24
140 | 4.3 | 2.8 | 2.1 | 0.22
150 | 4.9 | 2.6 | 1.9 | 0.20
160 | 5.6 | 2.4 | 1.8 | 0.18
170 | 6.4 | 2.3 | 1.7 | 0.17
180 | 7.3 | 2.2 | 1.6 | 0.15
190 | 8.2 | 2.1 | 1.5 | 0.14
200 | 9.2 | 2.0 | 1.5 | 0.13
210 | 10.2 | 1.9 | 1.4 | 0.13
220 | 11.3 | 1.8 | 1.3 | 0.12
Listed values may differ slightly. Unit = mm. *Without front cap

Specification (lighting, optics, sensor, compatibility, housing, features, information)
Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: Yes (N3C-D included)
• Polarizer: Yes, linear

Optics

• Magnification: 10x ~ 220x
• Macro zoom: No
• Working distance: Standard (up to ~6 cm)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2560 x 1920)
• Maximum frame rate: 45 fps (capture; video recording max 20 fps)

Compatibility

• Interface: USB 3.0, cable included (custom Dino-Lite cable)
• Operating systems: Windows 7/8/10/11; macOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Imaging standards: DirectShow, UVC

Housing & dimensions

• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 11.9 cm (L) x 3.3 cm (Ø)
• Weight: 110 g
• Cable length: 1.8 m

Features & information

• Special features: Automatic Magnification Reading (AMR), Flexible LED Control (FLC)
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, multiple front caps (N3C series)
• Warranty: 2 years (EU)
• Regulatory: CE, FCC, ROHS
• Price range: EUR 1100.00 – EUR 1300.00

Technical specifications

• Model: AM73515MZT
• Brand: Dino-Lite
• Magnification: 10x - 220x
• Sensor resolution: 5.0 MP (2560 x 1920)
• Max frame rate: 45 fps (capture at 1280 x 960; video max 20 fps)
• Interface: USB 3.0 (cable included)
• LEDs: 8 white LEDs, FLC, LED on/off
• Polarizer: Built-in linear polarizer
• Working distance: up to ~6 cm (standard)
• Lens: Glass with anti-reflection coating
• Housing: Metal; magnification lock enabled
• Dimensions / Weight: 11.9 cm x 3.3 cm / 110 g
• Cable length: 1.8 m
• OS support: Windows 7/8/10/11, macOS 10.9+
• Included accessories: pouch, software CD, manual, calibration target, front caps (N3C series)
• Warranty: 2 years (Europe)
