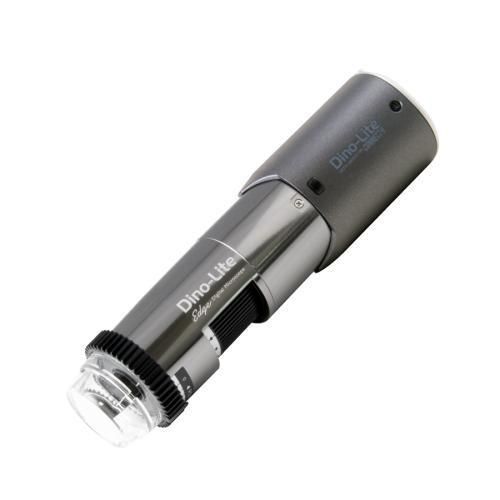

Digital video microscope WF7115MZTL

inspectionpolarizedhand-held

Description
The Dino-Lite WF7115MZTL is a 5-megapixel digital microscope featuring advanced optics, a full aluminium housing, Flexible LED Control (FLC) and a built-in linear polarizer. It belongs to the Long Working Distance (LWD) series and provides a magnification range of 10–140x for inspections that require extra distance or a larger field of view. The integrated polarizer reduces glare on reflective surfaces such as metal, plastic, glass, jewelry and electronic components.

Main features

• 5 Megapixel Edge sensor
• Long Working Distance (LWD)
• 10-140x magnification
• Integrated polarizer (linear)
• Aluminum / metal housing
• Flexible LED Control (FLC)
• Extensive measurement functions and calibration
• Exchangeable front caps (multiple included)
• Wireless ready (WiFi)
• Microtouch sensor and ESD safe

Optical data table (units in mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Included icons / notable built-in functions

• USB 2.0 interface
• FLC (Flexible LED Control)
• Polarizer (linear)
• Exchangeable caps (multiple cap types included)
• Measurement and calibration functions
• Wireless ready

Technical specifications

• Magnification: 10x ~ 140x
• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592 x 1944)
• Maximum frame rate: 30 fps
• Light / LED type: White
• Number of LEDs: 8 (LED on/off switchable)
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear (built-in)
• Lens type: Glass with anti-reflection coating
• Macro zoom: No
• Working distance: Long (LWD series)
• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.11.6 and up (cable only)
• Software: DinoCapture 2.0 (Windows) cable + wireless, DinoXcope (Mac OS) cable only, DinoConnect wireless only
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: Yes (wireless ready)
• Housing material: Metal / aluminum housing
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 135 g
• Cable length: 1.8 m
• Special features: Flexible LED Control (FLC), Microtouch sensor, Measurement, Calibration
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O Open cap, N3C-C Closed cap, N3C-D diffuser cap, N3C-E extension cap, N3C-L Long cap, N3C-S Side light cap
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range indicated: €1300.00 - €1500.00
