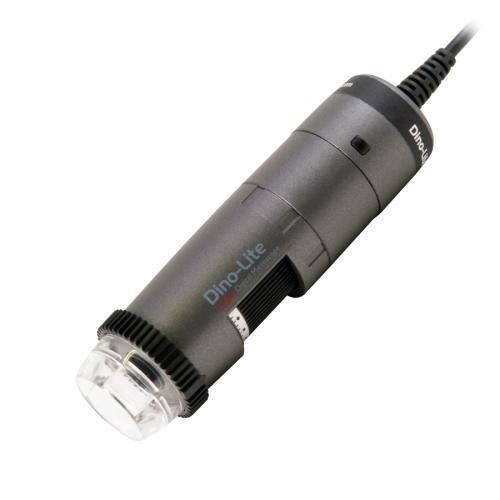

Digital video microscope AF4935ZTE

inspectionpolarizinghand-held

Product overview
The Dino-Lite AF4935ZTE is a USB-connected digital inspection microscope designed for high-magnification visual inspection and measurement. It is wireless-ready with the optional WF-20 adapter for fully wireless operation. The AF4x35 series provides a similar working distance range while delivering higher magnifications compared with the AM4x15 series.

Main features

• Wireless-ready (requires WF-20 adapter, optional)
• 10x–330x magnification range
• 1.3 Megapixel EDGE sensor (1280x1024), up to 30 fps
• Adjustable linear polarizer to reduce reflections
• Extended Depth of Field (EDOF) — Windows only
• Extended Dynamic Range (EDR) — Windows only
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• Integrated measurement and calibration functionality, microtouch sensor

Working distance / Field of view / Depth of field
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 222.3 | 39.1 | 29.3 | 55.5
20 | 98.9 | 19.5 | 14.7 | 14.6
30 | 58.5 | 13.0 | 9.8 | 6.8
40 | 38.7 | 9.8 | 7.3 | 4.0
50 | 27.2 | 7.8 | 5.9 | 2.7
60 | 19.9 | 6.5 | 4.9 | 2.0
70 | 14.9 | 5.6 | 4.2 | 1.5
80 | 11.5 | 4.9 | 3.7 | 1.2
90 | 9.0 | 4.3 | 3.3 | 1.0
100 | 7.2 | 3.9 | 2.9 | 0.8
110 | 5.9 | 3.6 | 2.7 | 0.7
120 | 4.9 | 3.3 | 2.4 | 0.6
130 | 4.3 | 3.0 | 2.3 | 0.5
140 | 3.9 | 2.8 | 2.1 | 0.5
150 | 3.7 | 2.6 | 2.0 | 0.4
160 | 3.6 | 2.4 | 1.8 | 0.4
170 | 3.7 | 2.3 | 1.7 | 0.4
180 | 3.8 | 2.2 | 1.6 | 0.3
190 | 4.1 | 2.1 | 1.5 | 0.3
200 | 4.4 | 2.0 | 1.5 | 0.3
210 | 4.7 | 1.9 | 1.4 | 0.3
220 | 5.2 | 1.8 | 1.3 | 0.2
230 | 5.6 | 1.7 | 1.3 | 0.2
240 | 6.2 | 1.6 | 1.2 | 0.2
250 | 6.7 | 1.6 | 1.2 | 0.2
260 | 7.3 | 1.5 | 1.1 | 0.2
270 | 7.9 | 1.4 | 1.1 | 0.2
280 | 8.5 | 1.4 | 1.0 | 0.2
290 | 9.2 | 1.3 | 1.0 | 0.2
300 | 9.9 | 1.3 | 1.0 | 0.2
310 | 10.6 | 1.3 | 0.9 | 0.2
320 | 11.3 | 1.2 | 0.9 | 0.1
330 | 12.0 | 1.2 | 0.9 | 0.1

Notes
EDOF and EDR functions are available only under Windows OS.

Technical specifications

• Light / LED type: White — 8 LEDs, LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser included: Yes (N3C-D)
• Polarizer: Linear, adjustable
• Magnification: 10x–330x (no macro zoom)
• Working distance: Standard
• Lens: Glass with anti-reflection coating
• Sensor: CMOS, 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps
• Interface: USB 2.0; wireless-ready with WF-20 adapter (optional)
• OS compatibility: Windows 7/8/10/11, MacOS 10.14 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards/formats: DirectShow, UVC; multiple image/video formats supported
• Housing: Composite/plastic; dimensions 11.4 cm (L) x 3.3 cm (D); weight 111 g; cable length 1.8 m
• Special features: AMR, EDR, EDOF, FLC, measurement and calibration, microtouch sensor
• ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C caps (O, C, D, E, L, S)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Indicative price range: €850,00 - €1050,00
• Model: AF4935ZTE — Brand: Dino-Lite
