Digital video microscope AM7515MZTL

inspectionpolarizedhand-held

Product overview

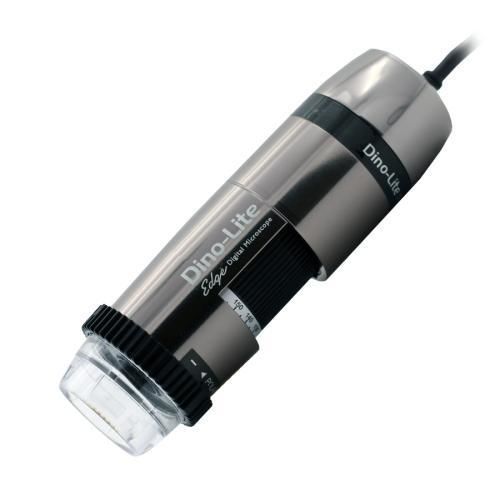

The Dino-Lite AM7515MZTL is a USB digital microscope featuring a 5.0 megapixel sensor, long working distance (LWD) optics and an aluminium/metal housing. It integrates Flexible LED Control (FLC), Automatic Magnification Reading (AMR) and a linear polarizer to support imaging of reflective surfaces and demanding inspection tasks.

Applications
Suitable for inspection, repair, rework and assembly of bulky or fragile parts where extra distance or a larger field of view is required. Recommended for electronics, jewelry, plastic, glass and metal surfaces, quality control and recurring measurement tasks thanks to AMR and built-in measurement functions.

Main features

• 5.0 MP Edge CMOS sensor (2592x1944)
• Magnification range: 10x – 140x (LWD)
• Integrated linear polarizer for reflective surfaces
• Flexible LED Control (FLC) with 8 white LEDs (on/off)
• Automatic Magnification Reading (AMR) and extensive measurement & calibration functions
• Aluminium/metal housing, magnification lock, microtouch sensor, ESD safe
• USB 2.0 interface; Wi‑Fi ready with optional WF-10 streamer
• Maximum frame rate: 30 fps; dimensions: 10.5 cm x 3.2 cm; weight: 135 g; cable: 1.8 m
• Exchangeable front caps (N3C series) and diffuser included

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Specifications (selected)

• Lighting: 8 white LEDs, on/off switchable; diffuser N3C-D included
• IR cut-filter >650 nm; emission filter: no
• Lens: glass with anti-reflection coating; macro zoom: no
• Interface & compatibility: USB 2.0; Windows 7/8/10/11, MacOS 10.9+; DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image/video formats: multiple formats (see product documentation)
• Imaging standards: DirectShow, UVC
• Special features: AMR, FLC, calibration, measurement functions
• Housing & mechanics: aluminium/metal, magnification lock, dimensions 10.5 cm x 3.2 cm, weight 135 g, cable 1.8 m
• Safety & compliance: ESD safe; CE, FCC, ROHS

Package and regulatory

• Package: microscope, carry pouch, software CD, calibration target, user manual, N3C front caps (O, C, D, E, L, S)
• Warranty: 2 years European warranty
• Optional: WF-10 Wi‑Fi streamer (sold separately)
