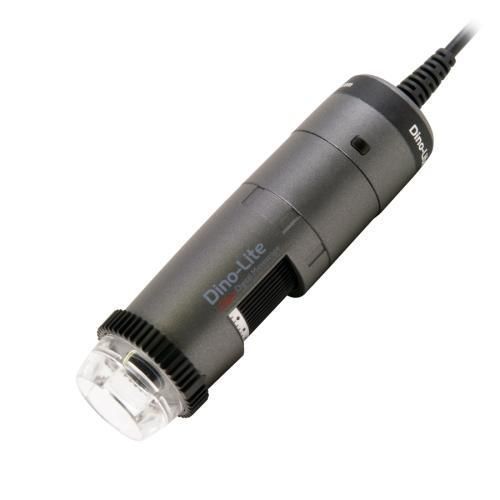

Digital video microscope AF4915ZT

inspectionhand-heldportable

Product overview
The Dino-Lite AF4915ZT is part of the Universal series and connects to host devices via USB. It is wireless-ready when used with the optional WF-20 adapter. The AF4915ZT is designed for measurement-intensive and inspection applications, combining high magnification range with integrated measurement functions.

Main features

• Wireless-ready (requires WF-20 adapter, optional)
• Magnification: 20x ~ 220x
• 1.3 Megapixel CMOS sensor (1280 x 1024)
• Integrated linear polarizer
• Extended Depth of Field (EDOF) (Windows only)
• Extended Dynamic Range (EDR) (Windows only)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Integrated measurement and calibration functionality
• Microtouch sensor

Magnification / Working distance / Field of view / Depth of field (units = mm)
MAGNIFICATION | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
60 | 9.7 | 6.5 | 5.2 | -
70 | 7.1 | 5.6 | 4.5 | 1.0
80 | 5.5 | 4.9 | 3.9 | -
90 | 4.5 | 4.3 | 3.5 | -
100 | 4.1 | 3.9 | 3.1 | -
110 | 4.0 | 3.6 | 2.8 | -
120 | 4.1 | 3.3 | 2.6 | -
130 | 4.5 | 3.0 | 2.4 | -
140 | 5.0 | 2.8 | 2.2 | -
150 | 5.6 | 2.6 | 2.1 | -
160 | 6.3 | 2.4 | 2.0 | -
170 | 7.1 | 2.3 | 1.8 | -
180 | 8.0 | 2.2 | 1.7 | -
190 | 8.9 | 2.1 | 1.6 | -
200 | 9.9 | 2.0 | 1.6 | -
210 | 10.9 | 1.9 | 1.5 | -
220 | 11.9 | 1.8 | 1.4 | 0.1
Listed values may differ slightly. *Without front cap

Specification (summary)

• Lighting: White LEDs; Number of LEDs: 8; LED on/off switchable: Yes; IR cut-filter: IR cut-filter > 650 nm; Diffuser: Yes (N3C-D included); Emission filter: No; Polarizer: Yes, linear
• Optics: Magnification 20x ~ 220x; Macro zoom: No; Working distance: Standard; Lens type: Glass with anti-reflection coating
• Sensor: CMOS sensor; Resolution: 1.3 Megapixel (1280 x 1024); Maximum frame rate: 30 fps
• Compatibility / Interface: USB 2.0 interface; Operating systems: Windows 7, 8, 10 & 11, MacOS 10.11.16 and up; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac); Imaging standards: DirectShow, UVC; Wifi: Wireless-ready (requires WF-20 adapter)
• Housing / Mechanical: Composite / plastic housing; Dimensions: 11.4 cm (L) x 3.3 cm (D); Weight: 111 g; Cable length: 1.8 m
• Features: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC); Measurement: Yes; Calibration: Yes; Microtouch sensor: Yes; ESD safe: No
• Information: Package contents: Microscope, Carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (Long cap), N3C-S (Side light cap); Warranty: 2 years European warranty; Regulatory approval: CE, FCC, ROHS; Price range: €700.00 - €800.00

Note
EDOF and EDR functionalities are available only under Windows OS.
