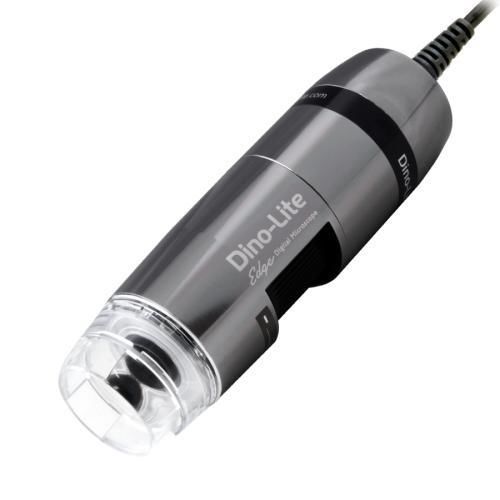

Digital video microscope AM4917MT8

inspectionhand-heldportable

Product description
At high magnifications the thickness or surface roughness of targets can prevent clear imaging. The high-sensitivity sensor of the EdgePLUS AM4917MT8 combined with the EDOF feature produces high-quality focus-stacked images at 800× magnification. AM4917MT8 also provides DPQ, eFLC, AMR, EDR and a click-to-focus function to simplify locating and focusing on points of interest.

Note
EDOF, EDR and DPQ are available on Windows PC only.

Main features

• 1.3 Megapixel sensor (1280 x 960)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Depth acquisition (DPQ)
• Enhanced Flexible LED Control (eFLC) with 8 white LEDs
• Click-to-focus function
• High-sensitivity CMOS optimized for high magnification

Optical data
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
700 | 5.82 | 0.558 | 0.419 | 0.00985
750 | 5.74 | 0.521 | 0.391 | 0.00973
800 | 5.68 | 0.488 | 0.366 | 0.00956
850 | 5.62 | 0.460 | 0.345 | 0.00937
900 | 5.57 | 0.434 | 0.326 | 0.00915

Technical specifications

• Lighting: White LEDs (8)
• Optics: Magnification 700×–900×
• Sensor type: CMOS, Resolution 1.3 MP (1280×960)
• Maximum frame rate: 30 fps (1.3 MP); MJPEG 30 fps in VGA
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11, macOS 10.14 or later (EDOF/EDR/DPQ functions: Windows only)
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image/video formats (MacOS): PNG, JPEG; MOV
• Housing: Metal
• Dimensions: 107 mm (H) × 33 mm (D)
• Weight: 130 g
• Calibration: Yes; Microtouch sensor: Yes
• Warranty: 2 years (Europe)
• Certifications: CE, FCC, RoHS

Notes
Listed values may differ slightly. *Without front cap. Unit = mm. EDOF, EDR and DPQ functions are supported on Windows PCs only.
