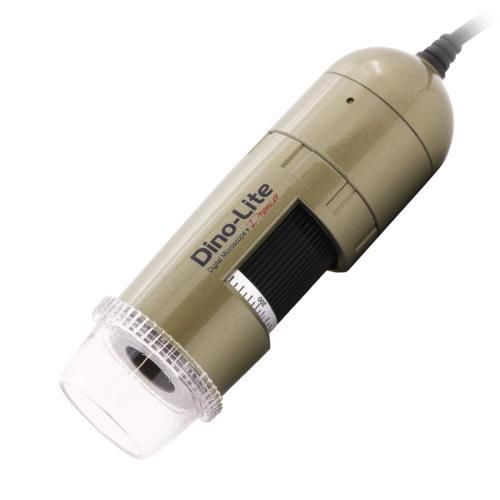

Optical video microscope AM4113ZT

digitalinspectionfor forensics

Product overview
The Dino-Lite AM4113ZT is a professional handheld digital microscope delivering up to 200x optical magnification. It integrates a 1.3 Megapixel (1280×1024) CMOS sensor, natural color reproduction and an adjustable linear polarizer to reduce glare and reflections. Bundled software for Windows and MacOS enables calibrated measurements and image capture.

Key features

• Optical magnification: 10x–70x and 200x (optical)
• Sensor: 1.3 MP CMOS, up to 30 fps
• Built-in adjustable linear polarizer for reflective surfaces
• Lighting: 8 white LEDs, switchable; IR cut-filter >650 nm
• Glass lens with anti-reflection coating and magnification lock
• Interface: USB 2.0; WiFi-ready with optional WF-10 streamer
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS); measurement calibration and MicroTouch support

Optical data (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 48.7 | 19.6 | 15.6 | 3.6
30 | 21.7 | 13.0 | 10.4 | 1.9
40 | 9.0 | 9.8 | 7.8 |
50 | 1.9 | 7.8 | 6.3 | 0.88
60 | -2.3 | 6.5 | 5.2 |
220 | -0.1 | 1.8 | 1.4 | 0.2
230 | 1.0 | 1.7 | 1.4 |
240 | 2.1 | 1.6 | 1.3 |
Listed values may differ slightly

Technical specifications

• Lighting: 8 white LEDs, LED on/off, IR cut-filter >650 nm
• Optics: Glass lens with anti-reflection coating; magnification lock; standard working distance
• Sensor: CMOS 1.3 Megapixel (1280×1024); max 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11 and MacOS 10.9+; DirectShow/UVC; optional WF-10 WiFi streamer
• Housing & dimensions: Composite/plastic housing; 10.5 cm (L) x 3.2 cm (D); weight 105 g; cable length 1.8 m
• Functions: Measurement and calibration supported; MicroTouch sensor supported; ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
• Warranty & approvals: 2 years European warranty; CE, FCC, ROHS
• Product code: AM4113ZT; Indicative price range: EUR 400 - 600

Applications

• Quality control and inspection of electronics, PCBs and SMD components
• Surface inspection on metals, coatings and solder joints
• Jewellery and gem inspection, watchmaking
• Research, education and forensic visual analysis
