Digital video microscope AM7115MZT

inspectionfor materials researchsoldering

Product description

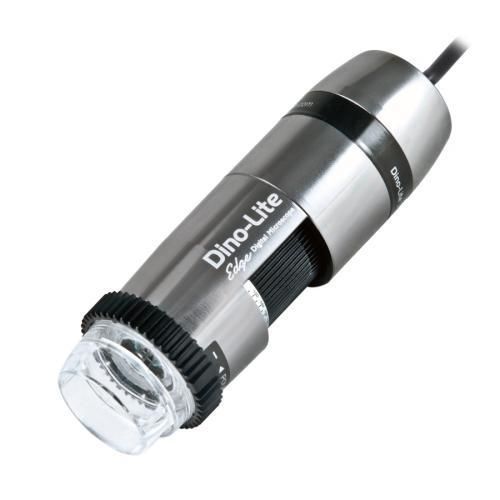

The Dino-Lite AM7115MZT is a handheld digital microscope featuring a 5 megapixel sensor, advanced optics, Flexible LED Control (FLC) and an aluminium/metal housing. It delivers accurate colour reproduction and high-resolution imaging across a wide magnification range for demanding professional inspection tasks.

Applications
With a standard working distance and magnification range of 10–220x and an integrated linear polarizer, the AM7115MZT is suited to industrial inspection, electronics, quality control, materials analysis, jewellery inspection and any application involving shiny or reflective surfaces (metal, plastic, glass, electronic components).

Main features

• 5 Megapixel Edge CMOS sensor (2592x1944)
• 10–220x magnification range
• Integrated linear polarizer
• Aluminium / metal housing
• Flexible LED Control (FLC) with 8 white LEDs, on/off switchable
• Extensive measurement and calibration functions
• Microtouch sensor and ESD-safe design
• Exchangeable front caps and diffuser included

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD
10 | - | 142.6 | 39.6 | 29.7 | 2.6
20 | 52.7 | 60.1 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1
* Without front cap | Unit = mm

Technical specifications

• Lighting: White LEDs (8), LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Integrated linear polarizer
• Lens: Glass with anti-reflection coating
• Sensor type: CMOS, 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11, MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (WF-10 WiFi streamer optional)
• Housing material: Metal / aluminium
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 135 g
• Cable length: 1.8 m
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Regulatory approval: CE, FCC, ROHS
• Price range: EUR 750.00 - EUR 1,000.00

Package contents & warranty

• Microscope (AM7115MZT)
• Carry pouch, software CD, calibration target, user manual
• Front caps: N3C-O (open), N3C-C (closed), N3C-D (diffuser), N3C-extension, N3C-L (long), N3C-S (side light)
• Warranty: 2 years European warranty
