Product overview

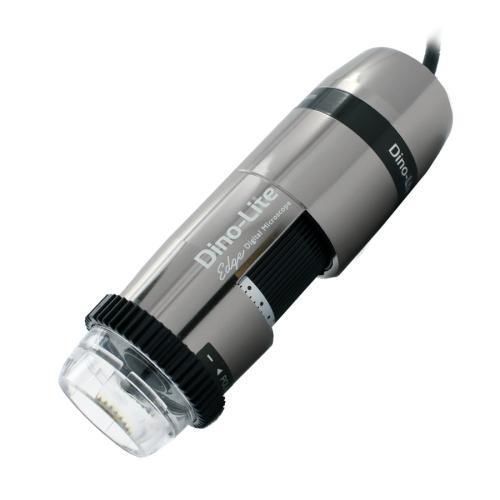

The AM7115MZTL - EDGE is a USB digital microscope engineered for professional inspection tasks. Featuring a 5-megapixel Edge sensor, advanced optics, Flexible LED Control (FLC) and a full aluminium housing, it delivers accurate color reproduction and high-resolution imaging in a long working distance form factor.

Application and key use
This model belongs to the Long Working Distance (LWD) range and provides a 10–140× magnification span with extended working distance and enlarged field of view. It is suited for repair, rework, assembly and inspection of bulky or fragile components where contact is not possible. The integrated linear polarizer reduces glare on reflective surfaces such as metal, plastic, glass, jewelry and electronic components.

Main features

• 5 Megapixel Edge sensor (2592×1944)
• Long Working Distance (LWD)
• 10–140× magnification range
• Integrated linear polarizer
• Aluminium / metal housing
• Flexible LED Control (FLC) for adjustable illumination
• Extensive measurement functions and calibration
• Exchangeable front caps (various caps included)
• ESD safe, Microtouch sensor

Optical Data Table (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09
Note: Listed values may differ slightly. * Without front cap. Unit = mm

Technical specifications

• Lighting: White LEDs (8), LED on/off switchable, diffuser included (N3C-D), IR cut-filter >650 nm
• Optics: Glass lens with anti-reflection coating; magnification 10×–140×; no macro zoom; Long Working Distance (LWD)
• Sensor: CMOS, 5.0 Megapixel (2592×1944), up to 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11, macOS 10.9+; DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported formats: Windows images BMP/GIF/PNG/JPG/TIF/...; videos WMV/FLV/SWF; Mac images JPEG/PNG; Mac video MOV (max 1.3MP)
• Standards & connectivity: DirectShow, UVC; WiFi-ready with optional WF-10 streamer
• Housing & dimensions: Metal (aluminium) housing, magnification lock, 10.5 cm (L) × 3.2 cm (D), weight 135 g, cable length 1.8 m
• Functions: Measurement, calibration, Microtouch sensor, ESD safe, Flexible LED Control (FLC)
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O/N3C-C/N3C-D/N3C-E/N3C-L/N3C-S caps
• Warranty & compliance: 2 years European warranty; CE, FCC, ROHS
• Indicative price range: €900.00 - €1100.00
