Digital video microscope AM7115MZTW

inspectionpolarizinghand-held

Product overview

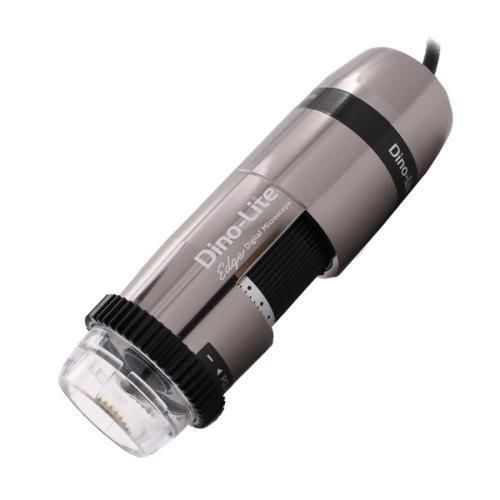

The Dino-Lite AM7115MZTW is a USB digital microscope designed for macro-view inspection. It combines a 5.0 MP Edge CMOS sensor (2592x1944) with a Wide Field of View (WFOV) optical design to deliver large field coverage and extended depth of field across a 10X-50X magnification range. The unit supports low-loss MJPEG compression and up to 30 fps for fluid image transmission and is UVC-compatible for plug-and-play use on Windows and macOS.

Main features

• 5.0 MP Edge CMOS sensor (2592x1944)
• Wide Field of View (WFOV) for macro inspection
• Magnification: 10X–50X (WFOV)
• Integrated linear polarizer for contrast control
• Metal housing, ESD safe
• Flexible LED Control (FLC) with on/off
• Extensive measurement and calibration functions
• Exchangeable front caps (N3C series)
• Microtouch sensor and magnification lock
• USB 2.0 (UVC / DirectShow) interface; optional WF-10 WiFi streamer

Optical data — T Zone (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
T Zone
50 | 14 mm | 9 mm | 7 mm | 3 mm
40 | 42 mm | 11 mm | 9 mm | 5 mm
30 | 64 mm | 15 mm | 12 mm | 9 mm
20 | 119 mm | 23 mm | 19 mm | 21 mm
15 | 182 mm | 30 mm | 24 mm | 39 mm

Optical data — W Zone (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
W Zone
30 | 11 mm | 14 mm | 11 mm | 6 mm
20 | 25 mm | 25 mm | 20 mm | 13 mm
15 | 39 mm | 31 mm | 25 mm | 22 mm
10 | 68 mm | 41 mm | 33 mm | 51 mm
5 | 156 mm | 98 mm | 78 mm | 250 mm

Specifications

• Lighting: 8 white LEDs, LED on/off, IR cut-filter >650 nm, diffuser included (N3C-D), linear polarizer integrated
• Optics: Magnification 10X–50X (WFOV), glass lens with anti-reflection coating, working distance as per optical tables
• Sensor: CMOS 5.0 MP (2592x1944), up to 30 fps, MJPEG low-loss
• Compatibility: USB 2.0 (UVC / DirectShow), Windows 7/8/10/11, macOS 10.9+, DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Housing & mechanics: Metal housing, magnification lock, ESD safe, dimensions 105 mm x 32 mm, weight 135 g, cable 1.8 m
• Special functions: Flexible LED Control (FLC), measurement and calibration tools, microtouch sensor

Package & warranty

• Includes: microscope, carry pouch, software CD, calibration target, user manual, front caps N3C-O / N3C-C / N3C-D / N3C-E / N3C-L / N3C-S
• Warranty: 2 years European warranty
• Certifications: CE, FCC, ROHS
• Optional accessories: WF-10 WiFi streamer
• Price range (informative): €900.00 - €1100.00
