Overview

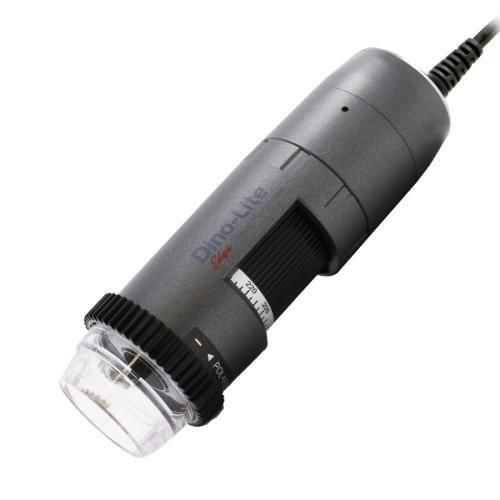

The Dino-Lite Edge AM4115ZT is a USB digital microscope designed for professional inspection and documentation. It features a 1.3 MP CMOS sensor (1280 x 1024), a 20x–220x magnification range and an integrated adjustable linear polarizer. The adaptable cap design and supplied exchangeable caps enable flexible use across inspection, quality control and failure analysis tasks.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 52.7 | 60.2 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1

Notes
Listed values may differ slightly. * Without front cap. Unit = mm.

Capability highlights

• USB 2.0 interface
• Measurement and calibration functions with Microtouch sensor
• Adjustable illumination and exchangeable caps (N3C series)
• Built-in adjustable linear polarizer to reduce glare and reflection
• EDOF / EDR / AMR features supported by the model family
• Wireless-ready with optional WF-10 WiFi streamer

Technical specifications

• Brand: Dino-Lite
• Model: AM4115ZT (Edge)
• Product code: AM4115ZT - EDGE
• Magnification range: 20x ~ 220x
• Lens type: Glass with anti-reflection coating
• Working distance: standard (see optical data table)
• Light / LED type: White
• Number of LEDs: 8 (switchable)
• IR filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Built-in adjustable linear polarizer
• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280 x 1024)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11; MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (WF-10 optional)
• Housing material: Composite / plastic
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: No
• Package contents: Microscope; Carry pouch; Software CD; Calibration target; User manual; N3C-O (Open cap); N3C-C (Closed cap); N3C-D (Diffuser cap); N3C-E (Extension cap); N3C-L (Long cap); N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €600.00 - €800.00
