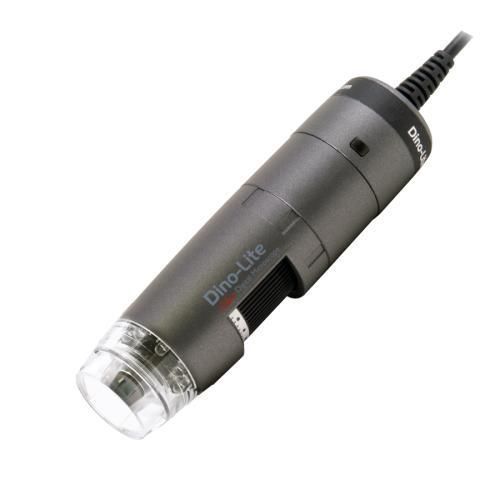

Digital video microscope AF4515T5

inspectionhand-heldportable

Product overview
The AF4515T5 is a high-magnification digital microscope offering 500–550x magnification with high-resolution optics capable of revealing details down to 2.5 µm. It provides an increased working distance at high magnification to facilitate observation and manipulation of very small objects. The device can be used handheld; for high-precision tasks a dedicated stand (e.g. RK-10A) is recommended.

Included software & functionality
The AF4515T5 is supplied with DinoCapture software (DinoCapture 2.0 on Windows / DinoXcope on Mac). Key functions include Automatic Magnification Reading (AMR), calibration, measurement, image capture and annotation, and video recording. Microtouch sensor enables easy capture. The unit supports USB 2.0 and a wireless-ready architecture for optional Wi‑Fi modules.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
500 | 9.5 mm | 0.8 mm | 0.6 mm | 0.15 mm
550 | 9.2 mm | 0.7 mm | 0.6 mm | 0.12 mm
(Listed values may differ slightly. * Without front cap. Unit = mm)

Key features

• High magnification: 500x – 550x
• Automatic Magnification Reading (AMR)
• Measurement and calibration functions
• Microtouch sensor for capture
• USB 2.0 interface; wireless-ready design

Package contents

• Microscope AF4515T5
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O open cap, N3C-C closed cap, N3C-E extension cap

Technical specifications

• Lighting: LED type – White; Number of LEDs – 8; LED on/off switchable – Yes; IR cut-filter >650 nm; Diffuser available – No
• Optics: Magnification 500x ~ 550x; Macro zoom – No; Working distance – Increased at high magnification (see optical table); Lens type – Glass with anti-reflection coating
• Sensor: Type – CMOS; Resolution – 1.3 Megapixel (1280x1024); Maximum frame rate – 30 fps
• Compatibility: Interface – USB 2.0; Operating systems – Windows 7, 8, 10 & 11; MacOS 10.9 and up; Software – DinoCapture 2.0 (Windows), DinoXcope (Mac); Imaging standards – DirectShow, UVC; Wi‑Fi – Wireless-ready
• Housing: Material – Composite/plastic; Dimensions – 10.5 cm (L) x 3.2 cm (D); Weight – 105 g; Cable length – 1.8 m
• Features: Measurement – Yes; Calibration – Yes; Microtouch sensor – Yes; ESD safe – No
• Information: Warranty – 2 years European warranty; Regulatory approval – CE, FCC, ROHS; Indicative price range – €600.00 - €800.00
