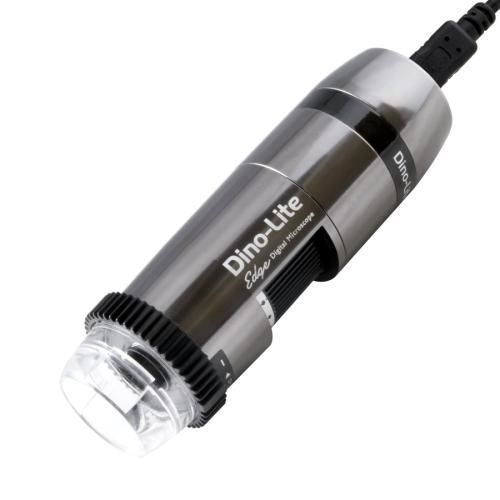

Digital video microscope AM4917MZT4

inspectionpolarizedhand-held

Description
As magnification increases, uneven surfaces often fall outside the limited depth of field. The Dino-Lite AM4917MZT4 digital microscope (400x–470x) simplifies focusing with its click-to-focus function and can generate focus-stacked images using EDOF. Equipped with an integrated polarizer and advanced imaging functions (EDOF, DPQ, AMR, EDR), the AM4917MZT4 delivers clear images for inspection, quality control and documentation tasks.

Note
EDOF, EDR and DPQ functionalities are available on Windows PC only.

Main features

• 1.3 Megapixel CMOS sensor (1280 × 960)
• Extended Depth of Field (EDOF) for focus-stacked images
• Extended Dynamic Range (EDR) to improve detail in high-contrast scenes
• Automatic Magnification Reading (AMR)
• Enhanced Flexible LED Control (eFLC)
• Integrated polarizer (anti-reflection)
• Magnification range: 400x–470x; click-to-focus and focus stacking

Icons and capabilities

• EDOF — available on Windows
• EDR — available on Windows
• DPQ — available on Windows
• AMR — Automatic Magnification Reading
• eFLC — Enhanced Flexible LED Control
• Integrated polarizer

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
400 | 5.68 mm | 0.977 mm | 0.732 mm | 0.041 mm
410 | 6.63 mm | 0.953 mm | 0.715 mm | 0.040 mm
420 | 7.59 mm | 0.930 mm | 0.698 mm | 0.039 mm
430 | 8.55 mm | 0.909 mm | 0.681 mm | 0.038 mm
440 | 9.51 mm | 0.888 mm | 0.666 mm | 0.038 mm
450 | 9.62 mm | 0.868 mm | 0.651 mm | 0.037 mm
460 | 9.56 mm | 0.849 mm | 0.637 mm | 0.036 mm
470 | 9.50 mm | 0.831 mm | 0.623 mm | 0.036 mm

Specification (summary)
Light / LED type: White
Number of LEDs: 8
Magnification: 400x ~ 470x
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x960)
Maximum frame rate: 30 fps in 1.3 MP; MJPEG 30 fps in VGA
Interface: USB 2.0
Operating system: Windows 7/8/10/11; MacOS 10.12 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): PNG, JPEG
Supported video formats (MacOS): MOV
Housing material: Metal housing
Dimensions: 10.7 cm (H) x 3.3 cm (D)
Weight: 130 g
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range (listed): €1200.00 - €1400.00

Technical specifications

• Product code: AM4917MZT4
• Brand: Dino-Lite
• Sensor: CMOS 1.3 MP (1280 × 960)
• Magnification range: 400x–470x
• LEDs: 8 (white)
• Integrated polarizer
• Advanced imaging features: EDOF, EDR, DPQ (Windows only)
• Interface: USB 2.0
• Compatible OS: Windows 7/8/10/11, MacOS 10.12+
• Dimensions & weight: 10.7 cm (H) × 3.3 cm (D); 130 g
• Warranty: 2 years (Europe)
