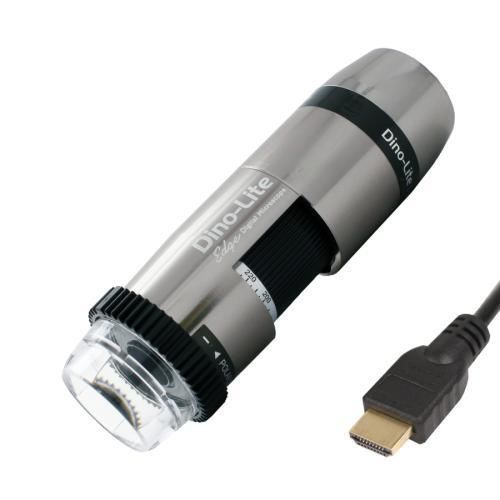

Digital video microscope AM5218MZTW

inspectionLEDwith LED light

Product overview
The Dino-Lite AM5218MZTW is an HDMI wide-field-of-view (WFOV) inspection microscope designed for direct connection to LCD and TV displays. It provides live HD 720p streaming and a zoom range suitable for both micro- and macro-observations when a monitor-only setup is required.

Main features

• Direct HDMI interface for monitor/TV
• High optical resolution
• Wide Field of View (WFOV)
• Microtouch button and sensor
• Interchangeable caps (multiple optics accessories)
• HD 720p live streaming at up to 60 fps
• 8 white LEDs, switchable
• IR cut filter >650 nm and linear polarizer
• Metal housing, ESD safe
• Magnification lock

Optical Data Table - T Zone (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
50 | 10 | 9 | 7 | 3
40 | 30 | 11 | 9 | 4
30 | 60 | 15 | 12 | 6
20 | 120 | 23 | 19 |
15 | 170 | 30 | 24 |

Optical Data Table - W Zone (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
30 | 10 | 14 | 11 | 6
20 | 30 | 25 | 20 |
15 | 40 | 31 | 25 |
10 | 60 | 41 | 33 |
5 | 170 | 98 | 78 |

Specification (detailed)

• Lighting: White LEDs (8); LED on/off switchable; IR cut filter >650 nm; Emission filter: No; Polarizer: Linear
• Optics: Optical magnification 10×–50×; Macro zoom: No; Working distance: Standard; Lens: Glass with anti-reflection coating
• Sensor: CMOS; Resolution: HD 720p; Maximum frame rate: 60 fps
• Compatibility: Interface: HDMI (direct to LCD/TV); Wi‑Fi: No
• Housing: Metal housing; ESD safe; Magnification lock; Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 125 g
• Features: Microtouch sensor; Measurement: No; Calibration: No
• Information: Package contents: Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap); Warranty: 2 years (Europe); Approvals: CE, FCC, ROHS; Indicative price range: €900.00 - €1100.00

Technical characteristics / specifications

• Model: AM5218MZTW
• Brand: Dino-Lite
• Optical magnification range: 10× – 50×
• Video resolution: HD 720p (live streaming)
• Maximum frame rate: 60 fps
• Interface: HDMI (direct connection to LCD/TV)
• Illumination: 8 white LEDs, switchable
• IR cut filter: >650 nm
• Polarizer: Linear
• Lens: Glass with anti-reflection coating
• Housing: Metal; ESD safe; Magnification lock
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 125 g
• Package includes interchangeable caps and accessories (see specification)
• Warranty: 2 years (Europe)
• Regulatory: CE, FCC, ROHS
• Indicative price range (excl. tax): €900.00 - €1100.00
