Product overview

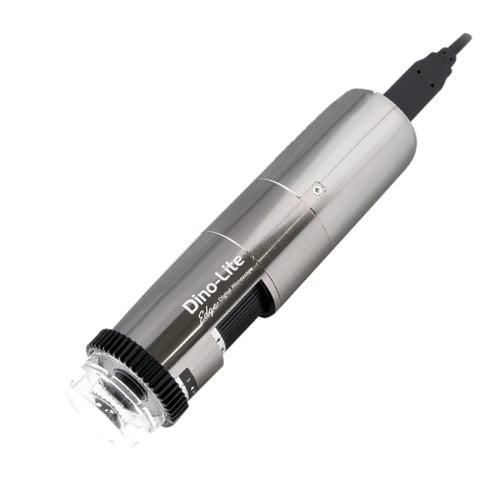

The AM8517MZTL is an 8.0 MP long working distance digital microscope designed for industrial imaging and measurement workflows. It combines high optical resolution with Automatic Magnification Reading (AMR), adjustable polarizer and enhanced flexible LED control for repeatable inspections and calibrated measurements.

Main features

• 8.0 Megapixel CMOS sensor (3840 x 2160)
• Optical magnification: 10x – 140x
• Long working distance: 238.3 mm – 33.5 mm
• Automatic Magnification Reading (AMR)
• Enhanced Flexible LED Control (eFLC) — 8 white LEDs
• Adjustable polarizer
• Auto and manual refocus
• Measurement and calibration capable; Microtouch sensor
• Metal housing; USB 2.0 interface; Windows 10/11 compatible

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE * (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 238.3 | 60.69 | 34.14 | 25.99
20 | 115.4 | 30.35 | 17.07 | 6.94
30 | 75.9 | 20.23 | 11.38 | 3.29
40 | 57.1 | 15.17 | 8.53 | 2.00
50 | 46.7 | 12.14 | 6.83 | 1.42
60 | 40.5 | 10.11 | 5.69 | 1.09
70 | 36.7 | 8.67 | 4.88 | 0.87
80 | 34.3 | 7.59 | 4.27 | 0.72
90 | 32.9 | 6.74 | 3.79 | 0.62
100 | 32.3 | 6.07 | 3.41 | 0.53
110 | 32.1 | 5.52 | 3.10 | 0.47
120 | 32.3 | 5.06 | 2.85 | 0.42
130 | 32.8 | 4.67 | 2.63 | 0.38
140 | 33.5 | 4.34 | 2.44 | 0.35
Listed values may differ slightly. * Without front cap. Unit = mm

Specification (summary)
Lighting: White LED, number of LEDs: 8
Optics: Magnification 10x ~ 140x; Working distance 238.3 ~ 33.5 mm
Sensor: CMOS, Resolution 8.0 MP (3840 x 2160); Max frame rate: 10 fps @ 8.0 MP (MJPEG), 25 fps @ 2.0 MP (MJPEG)
Compatibility: USB 2.0 interface; Windows 10/11; supported image and video formats on Windows as listed by manufacturer
Housing: Metal; Dimensions: 130 mm (H) x 33 mm (D); Weight: 120 g
Features: Auto and manual refocus; measurement and calibration capable; Microtouch sensor
Package contents: multiple caps (Close, Diffuser, Opal Diffuser, Extended Open, Long, Open, Sidelight)
Warranty & compliance: 2-year EU warranty; CE, FCC, ROHS
Price range (indicative): €1200.00 - €1400.00

Technical specifications

• Model: AM8517MZTL
• Sensor type: CMOS, 8.0 MP (3840 x 2160)
• Magnification: 10x – 140x
• Working distance: 238.3 mm – 33.5 mm
• Field of view / depth of field: see optical data table (units = mm)
• LEDs: 8 white LEDs with eFLC
• Polarizer: adjustable
• Interface: USB 2.0 (Windows 10/11 compatible)
• Housing: metal; Dimensions: 130 x 33 mm; Weight: 120 g
• Special features: AMR, Auto/Manual Refocus, Measurement & Calibration, Microtouch sensor
• Included accessories: N3C-C, N3C-D, N3C-D2, N3C-E, N3C-L, N3C-O, N3C-S
