Digital video microscope AF4915ZTL

inspectionpolarizedpolarization

Product overview

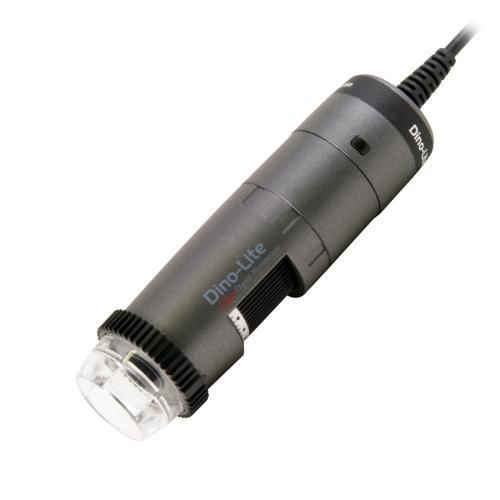

The Dino-Lite AF4915ZTL is a long-working-distance (LWD) digital USB inspection microscope for industrial measurement and visual inspection. It features a 1.3 MP Edge CMOS sensor, 10–140x magnification range and an adjustable linear polarizer. The unit is wireless-ready with the optional WF-20 adapter and connects via USB 2.0.

Main features

• 10–140x magnification; long working distance per optical table
• 1.3 Megapixel (1280×1024) Edge CMOS sensor, up to 30 fps
• Adjustable linear polarizer for glare reduction
• Flexible LED Control (FLC) with 8 white LEDs, LED on/off
• Integrated diffuser (N3C-D included) and multiple cap accessories
• Automatic Magnification Reading (AMR) and measurement/calibration support
• Extended Depth of Field (EDOF) and Extended Dynamic Range (EDR) — Windows only
• Wireless-ready (WF-20 adapter required, optional)

Optical data table (unit = mm)
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Technical specifications

• Interface: USB 2.0; imaging standards DirectShow, UVC
• Sensor: 1.3 MP Edge CMOS (1280×1024), max 30 fps
• Lens: glass with anti-reflection coating; IR cut-filter >650 nm
• Lighting: 8 white LEDs, on/off, diffuser included (N3C-D)
• Polarizer: adjustable linear
• Dimensions: 114 mm (L) × 33 mm (Ø); weight: 111 g; cable: 1.8 m
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported OS: Windows 7/8/10/11; macOS 10.12 and up
• Measurement & calibration: supported; Microtouch sensor included
• Package contents: microscope, carry pouch, software CD, calibration target, user manual, multiple caps (N3C series)
• Warranty & compliance: 2 years (EU); CE, FCC, ROHS
• Indicative price: €700–€800
