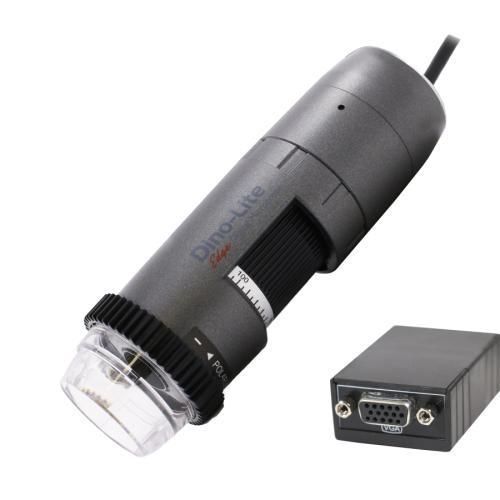

Digital video microscope AM5216ZTL

inspectionpolarizedwhite light

Product overview
The AM5216ZTL is a VGA-output digital inspection microscope providing real-time images at 1280 x 720 (720p). It connects directly to VGA (D-SUB) displays and delivers up to 60 fps for smooth live inspection. The integrated adjustable linear polarizer reduces glare on shiny surfaces and the Microtouch sensor allows image freeze and LED on/off control. The AM5216ZTL replaces model AM5116ZTL.

Recommended applications
Suitable for PCB inspection, electronics assembly and rework, quality control of small components, micro-mechanical inspection and any application requiring clear real-time visualization at extended working distances (up to 15 cm).

Key features

• Direct VGA (D-SUB) output for connection to VGA monitors
• Sensor resolution: 1280 x 720 (720p)
• Maximum frame rate: 60 fps for real-time imaging
• Magnification range: 10x ~ 140x
• Long working distance: up to 15 cm
• Adjustable linear polarizer to reduce glare/reflections
• Microtouch sensor: image freeze and LED on/off
• 8 white LEDs, LED on/off switchable
• IR cut-filter >650 nm and included diffuser (N3C-D)
• Glass lens with anti-reflection coating; CMOS sensor

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD (Unit = mm)
10 | 234.5 | 39.0 | 22 | 12
20 | 112.5 | 19.5 | 11 | 4.5
30 | 72.5 | 13.0 | 7.3 | 3.1
40 | 54.5 | 9.8 | 5.5 | 1.8
50 | 43.5 | 7.8 | 4.4 | 1.2
60 | 37.5 | 6.5 | 3.7 | 0.9
70 | 33.7 | 5.6 | 3.2 | 0.6
80 | 31.3 | 4.9 | 2.8 | 0.5
90 | 29.9 | 4.3 | 2.4 | 0.37
100 | 29.2 | 3.9 | 2.2 | 0.28
110 | 29.1 | 3.5 | 2.0 | 0.22
120 | 29.3 | 3.3 | 1.9 | 0.17
130 | 29.8 | 3.0 | 1.7 | 0.12
140 | 30.5 | 2.8 | 1.6 | 0.09

Specification
Lighting
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes (Microtouch)
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, adjustable linear

Optics
Magnification: 10x ~ 140x
Macro zoom: No
Working distance: Long (up to 15 cm)
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1280 x 720 (720p)
Maximum frame rate: 60 fps

Compatibility
Interface: VGA (D-Sub)
WiFi: No

Housing
Housing material: Composite / plastic
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 105 g
Cable length: 0.6 m

Features
Special feature: Microtouch sensor (image freeze and LED control)
Measurement: No
Calibration: No
ESD safe: No

Information
Package contents: Microscope, carry pouch, power adapter, front cover box, user manual
Warranty: 2 years European warranty
Regulatory: CE, FCC, ROHS
Price range (indicative): EUR 600.00 - EUR 800.00
