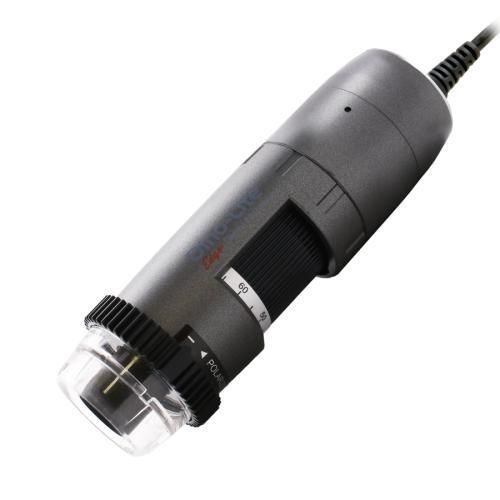

Digital video microscope AM4115ZTW

inspectionpolarizinghand-held

Product overview
The Dino-Lite AM4115ZTW is a USB digital microscope designed for professional macro inspection and documentation. It combines a 1.3 MP sensor with a glass anti-reflection lens, an adjustable linear polarizer and a macro-zoom capability offering two magnification zones while keeping the same working distance, enabling both larger field-of-view and higher-detail inspection.

Key features

• Magnification range: 10x–50x (macro zoom supporting two zones)
• Adjustable linear polarizer to reduce glare on shiny surfaces
• Illumination: 8 white LEDs, switchable; IR cut-filter >650 nm; diffuser (N3C-D) included
• Sensor: 1.3 MP CMOS (1280×1024), up to 30 fps
• Interface: USB 2.0 (DirectShow, UVC); WiFi-ready with optional WF-10 streamer
• Measurement and calibration functions; Microtouch sensor; magnification lock
• Housing: composite/plastic; dimensions 10.5 cm × 3.2 cm; weight 100 g; cable 1.8 m

Optical data — T Zone (Macro zoom / Larger magnification) — Unit = mm
MAGNIFICATION | WORKING DISTANCE | FOV(X) | FOV(Y) | DOF
15 | 182 | 30 | 24 | 39
20 | 119 | 23 | 19 | 21
30 | 64 | 15 | 12 | 9
40 | 42 | 11 | 9 | 5
50 | 14 | 9 | 7 | 3

Optical data — W Zone (Standard zoom / Larger FOV) — Unit = mm
MAGNIFICATION | WORKING DISTANCE | FOV(X) | FOV(Y) | DOF
5 | 156 | 98 | 78 | 250
10 | 68 | 41 | 33 | 51
15 | 39 | 31 | 25 | 22
20 | 25 | 25 | 20 | 13
30 | 11 | 14 | 11 | 6

Package contents & certifications

• Microscope, carry pouch, software CD, calibration target, user manual
• Caps: N3C-O (open), N3C-C (closed), N3C-D (diffuser), N3C-E (extension), N3C-L (long), N3C-S (side light)
• Warranty: 2 years (European); Approvals: CE, FCC, ROHS

Technical specifications (summary)

• Model: AM4115ZTW — Brand: Dino-Lite
• Magnification: 10x ~ 50x; Macro zoom capability with two zones
• Sensor: CMOS 1.3 MP (1280×1024), max 30 fps
• Lighting: 8 white LEDs, switchable; linear polarizer; IR cut-filter >650 nm; diffuser included
• Lens: Glass with anti-reflection coating
• Interface & software: USB 2.0, DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Compatibility: Windows 7/8/10/11, macOS 10.9+
• Measurements & calibration supported; ESD: no
• Price indication: €600 - €800
