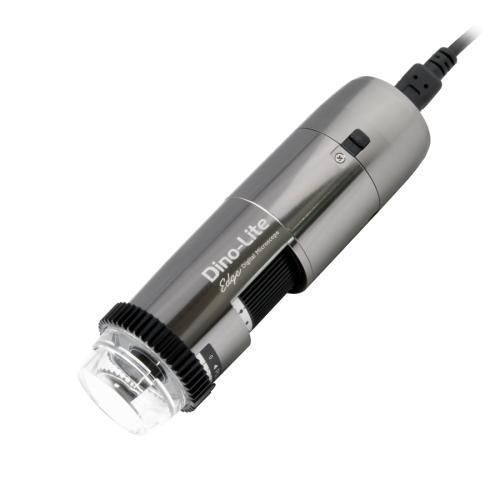

Digital video microscope AF7515MZT4

inspectionpolarizedcompact

Description
The 5MP Edge AF7515MZT4 is a compact digital microscope designed for high-magnification inspection and measurement. Delivering detailed color images at approx. 400x–470x magnification, it is suited for tasks such as defect detection, edge sharpness evaluation and surface roughness inspection. The unit integrates a linear polarizer, Flexible LED Control (FLC) and Automatic Magnification Reading (AMR). Wireless streaming is available via the optional WF-20 streamer.

Main features

• 5 Megapixel Edge CMOS sensor (2592x1944)
• High optical resolution at 400–470x
• Automatic Magnification Reading (AMR) for measurement
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs and diffuser
• Metal housing, magnification lock and ESD safe
• Adaptable interface: USB 2.0 (wireless-ready with WF-20)

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
400 | 4.8 | 0.99 | 0.74 | 0.040
410 | 5.8 | 0.97 | 0.72 | 0.039
420 | 6.7 | 0.94 | 0.71 | 0.038
430 | 7.7 | 0.92 | 0.69 | 0.037
440 | 8.6 | 0.90 | 0.67 | 0.036
450 | 8.6 | 0.88 | 0.66 | 0.035
460 | 8.5 | 0.86 | 0.65 | 0.034
450 | 8.4 | 0.84 | 0.63 | 0.034

Specification (selected sections)
Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Diffuser available: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear (adjustable)

Optics

• Magnification: 400x ~ 470x
• Macro zoom: No
• Working distance: See optical data table
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0 (wireless-ready with optional WF-20)
• Operating systems: Windows 7/8/10/11; MacOS 10.14+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC

Housing

• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 11.5 cm (H) x 3.4 cm (D)
• Weight: 97 g
• Cable length: 1.8 m

Features

• Special feature: Flexible LED Control (FLC)
• Measurement: Yes (AMR and measurement functions)
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (Long cap), N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €900.00 - €1100.00

Technical specifications (summary)

• Model: AF7515MZT4 - Edge
• Brand: Dino-Lite
• Sensor: 5.0 MP CMOS (2592x1944)
• Max frame rate: 30 fps
• Magnification: 400x ~ 470x
• Lighting: 8 white LEDs, diffuser included, polarizer (linear)
• Interface: USB 2.0 (wireless-ready with WF-20)
• Dimensions / Weight: 11.5 cm x 3.4 cm / 97 g
• Cable: 1.8 m
• Housing: Metal; ESD safe; magnification lock
• Functions: AMR, measurement, calibration, microtouch sensor
