Digital video microscope AM7515MZT2P-APL

inspectionpolarizedpolarization

Description

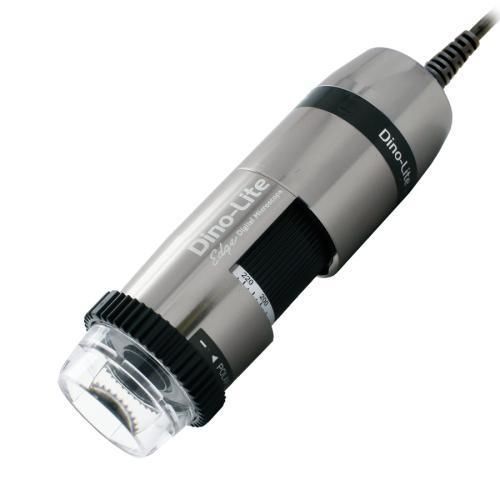

Integrated with Aim Point Laser (APL), the Dino-Lite AM7515MZT2P-APL simplifies locating and focusing the target under a microscope. This 5 MP digital microscope offers a wide magnification range of 130x–220x and includes Automatic Magnification Reading (AMR), Flexible LED Control (FLC), an integrated polarizer, metal housing and exchangeable front caps.

Overview
The AM7515MZT2P-APL is part of Dino-Lite's universal series with a standard working distance and a broad magnification range suitable for inspection, quality control and documentation tasks. The built-in linear polarizer improves imaging of shiny or reflective surfaces such as metal, plastics, glass, jewelry and electronic components. The integrated Aim Point Laser (APL) projects a red dot through the lens to provide a visual reference for positioning and focusing.

Main features

• 5.0 Megapixel CMOS sensor (2592 x 1944)
• Magnification range: 130x - 220x
• Integrated linear polarizer
• Metal (aluminum) housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• Aim Point Laser (APL) – 656 nm
• Extensive measurement functions and calibration
• Exchangeable front caps (multiple types included)
• Microtouch sensor, ESD safe

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
Listed values may differ slightly | | * Without front cap | | | Unit = mm
130 | - | 4.5 | 3.0 | 2.2 | -
140 | - | 5.0 | 2.8 | 2.1 | -
150 | - | 5.6 | 2.6 | 1.9 | -
160 | - | 6.3 | 2.4 | 1.8 | -
170 | - | 7.1 | 2.3 | 1.7 | -
180 | - | 8.0 | 2.2 | 1.6 | -
190 | - | 8.9 | 2.1 | 1.5 | -
200 | - | 9.9 | 2.0 | 1.5 | -
210 | - | 10.9 | 1.9 | 1.4 | -
220 | - | 11.9 | 1.8 | 1.3 | 0.1

Specifications

• Model: AM7515MZT2P-APL
• Lighting: White LEDs, 8 LEDs, LED on/off switchable; diffuser N3C-D included; IR cut filter >650 nm
• Optics: Glass lens with anti-reflection coating; no macro zoom; working distance: standard
• Sensor: CMOS, 5.0 MP (2592 x 1944), max 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11, MacOS 10.14+; software DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC; WiFi ready (WF-10 accessory optional)
• Housing: Metal housing; dimensions 107 mm (L) x 32 mm (D); weight 140 g; cable length 1.8 m
• Special features: AMR, FLC, APL; measurement and calibration functions; Microtouch sensor; ESD safe

Package contents & warranty

• Microscope AM7515MZT2P-APL
• Carry pouch, software CD, calibration target, user manual
• Front caps: N3C-O (open), N3C-C (closed), N3C-D (diffuser), N3C-E (extension), N3C-L (long), N3C-S (side light)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
