Digital video microscope Edge Plus

inspectionfor researchcompact

Product overview

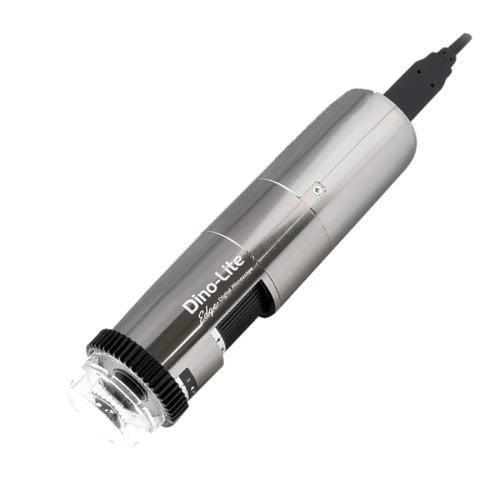

The AM8917MZTL Edge Plus is an 8-megapixel long working distance digital microscope designed for industrial imaging and precise measurement tasks. It combines high optical resolution with measurement features such as Automatic Magnification Reading (AMR) and supports Windows-based refocus and calibration workflows.

Main features

• 8.0 Megapixel sensor (3840 x 2160)
• Long working distance optics (LWD)
• Magnification range: 10x – 140x
• Automatic Magnification Reading (AMR)
• Extended Depth of Field (EDOF) and Extended Dynamic Range (EDR)
• Depth acquisition (DPQ)
• Enhanced flexible LED control (eFLC) with 8 white LEDs
• Adjustable polarizer
• Measurement and calibration support (Windows)
• Metal housing, compact dimensions

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 237.5 | 60.69 | 34.14 | 25.82
20 | 115.3 | 30.35 | 17.07 | 6.89
30 | 75.9 | 20.23 | 11.38 | 3.50
40 | 57.3 | 15.17 | 8.53 | 2.23
50 | 47.0 | 12.14 | 6.83 | 1.59
60 | 40.8 | 10.11 | 5.69 | 1.22
70 | 36.9 | 8.67 | 4.88 | 0.98
80 | 34.6 | 7.59 | 4.27 | 0.82
90 | 33.2 | 6.74 | 3.79 | 0.70
100 | 32.6 | 6.07 | 3.41 | 0.61
110 | 32.4 | 5.52 | 3.10 | 0.53
120 | 32.7 | 5.06 | 2.85 | 0.48
130 | 33.2 | 4.67 | 2.63 | 0.43
140 | 33.9 | 4.34 | 2.44 | 0.39
* Values measured without front cap. Unit = mm.

Specification highlights

• Lighting: 8 white LEDs, enhanced flexible LED control (eFLC)
• Sensor: CMOS, 8.0 MP (3840 x 2160)
• Maximum frame rate: 10 fps at 8.0 MP (MJPEG); MJPEG 25 fps at 2.0 MP
• Interface: USB 2.0
• Operating system: Windows 10/11 (advanced features available on Windows)
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Housing: metal; Dimensions: 130 mm (H) x 33 mm (D); Weight: 120 g
• Price range indicated: €1500.00 - €1700.00

Package & warranty
Package includes a set of caps and diffusers (N3C-C, N3C-D, N3C-D2, N3C-E, N3C-L, N3C-O, N3C-S) and a microtouch sensor. European warranty: 2 years.

Technical specifications

• Model family: Edge Plus
• Product code: AM8917MZTL Edge Plus
• Brand: Dino-Lite
• Magnification range: 10x – 140x
• Working distance range: 237.5 mm – 33.9 mm (without front cap)
• Special functions: AMR, EDOF, EDR, DPQ, Auto/Manual Refocus (Windows PC)
• Measurement & calibration: supported
• Interface: USB 2.0
• Regulatory approvals: CE, FCC, ROHS
