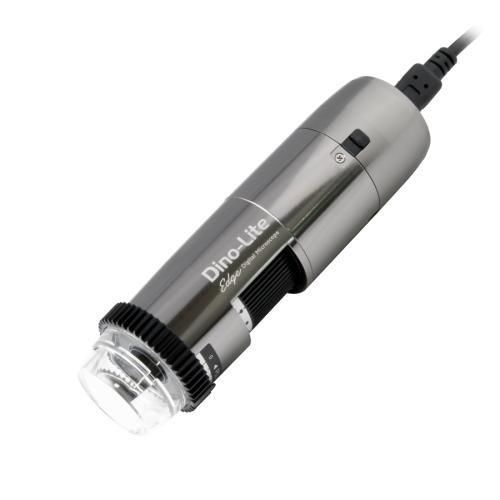

Digital video microscope AF7515MZT

inspectionfor forensicslaboratory

Overview
The Dino-Lite AF7515MZT is a USB 2.0 digital microscope equipped with a 5 megapixel Edge sensor, integrated polarizer and full aluminum housing. It delivers accurate image capture and color reproduction for inspection, measurement and documentation tasks in industrial and laboratory environments.

Applications and benefits
Part of the universal range, the AF7515MZT features a standard working distance and a wide magnification range of 10–220x, suitable for inspection of metals, plastics, glass, jewelry, electronics, quality control, education and forensic work. The built-in polarizer reduces reflections on shiny surfaces. The Automatic Magnification Reading (AMR) simplifies repeated measurement workflows.

Key features

• 5 Megapixel Edge sensor (2592x1944)
• Magnification: 10–220x
• Integrated linear polarizer
• Aluminum/metal housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• Extensive measurement and calibration functions
• Exchangeable front caps and diffuser included (N3C-D)
• Wireless-ready (requires optional WF-20)
• Microtouch sensor and ESD-safe

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD
10 | 142.6 | 39.6 | 29.7 | 26.0
20 | 60.1 | 19.8 | 14.8 | 7.0
30 | 33.6 | 13.2 | 9.9 | 3.3
40 | 21.0 | 9.9 | 7.4 | 2.0
50 | 14.0 | 7.9 | 5.9 | 1.4
60 | 9.8 | 6.6 | 4.9 | 1.0
70 | 7.3 | 5.7 | 4.2 | 0.8
80 | 5.7 | 4.9 | 3.7 | 0.6
90 | 4.8 | 4.4 | 3.3 | 0.5
100 | 4.3 | 4.0 | 3.0 | 0.4
110 | 4.2 | 3.6 | 2.7 | 0.4
120 | 4.3 | 3.3 | 2.5 | 0.3
130 | 4.7 | 3.0 | 2.3 | 0.3
140 | 5.2 | 2.8 | 2.1 | 0.3
150 | 5.8 | 2.6 | 2.0 | 0.3
160 | 6.5 | 2.5 | 1.9 | 0.2
170 | 7.3 | 2.3 | 1.8 | 0.2
180 | 8.1 | 2.2 | 1.6 | 0.2
190 | 9.1 | 2.1 | 1.6 | 0.2
200 | 10.0 | 2.0 | 1.5 | 0.2
210 | 11.0 | 1.9 | 1.4 | 0.2
220 | 12.1 | 1.8 | 1.3 | 0.2

Specifications

• Lighting: White LEDs (8), LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Lens: Glass with anti-reflection coating
• Sensor type: CMOS, Resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• OS compatibility: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Video formats (Windows): WMV, FLV, SWF; Mac video: MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• Housing: Metal, Dimensions: 11.5 cm (L) x 3.4 cm (D), Weight: 97 g
• Cable length: 1.8 m
• Special functions: AMR, FLC, Microtouch sensor, Measurement and calibration
• Wireless-ready: requires WF-20 (optional)
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S
• Approvals: CE, FCC, ROHS
• Warranty: 2 years (European)
• Indicative price range: €1000.00 - €1200.00
