Digital video microscope AM7515MTFP-APL

inspectionpolarizedpolarizing

Product overview

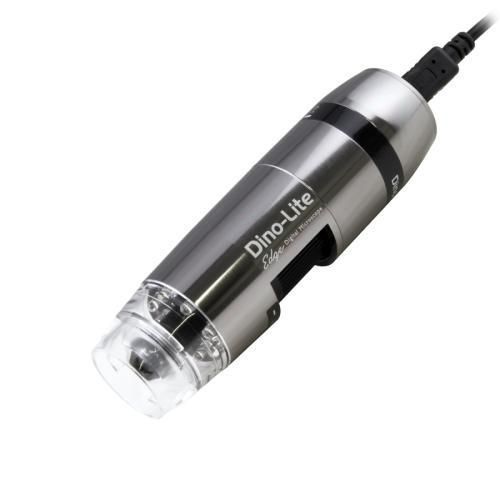

The AM7515MTFP-APL is a 5.0 megapixel extra long working distance (ELWD) digital inspection microscope offering 45–70x magnification. It integrates an Aim Point Laser (APL) for visual targeting, a built-in polarizer to control reflections, Automatic Magnification Reading (AMR) and Flexible LED Control (FLC). The metal (aluminum) housing and glass lens with anti-reflection coating enable clear imaging at a working distance up to 108 mm at 70x.

Applications
This ELWD model is suited for industrial inspection, repair, rework and assembly tasks where extra distance to the object or a larger field of view is required. It is also appropriate for handling bulky or fragile items that cannot be touched directly and for inspecting shiny or reflective surfaces such as metal, plastic, glass, jewelry and electronic components. The AMR function supports frequent measurement workflows.

Aim Point Laser (APL)
The Aim Point Laser (APL) is an integrated through-lens laser that projects a red reference dot to assist positioning and focusing on the target without contact.

Main features

• 5.0 Megapixel CMOS edge sensor (2592 x 1944)
• Extra Long Working Distance (ELWD) / Long Working Distance (LWD)
• 45–70x magnification range
• Integrated polarizer for reflection control
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs (on/off)
• Aim Point Laser (APL) — 656 nm laser diode
• Extensive measurement functions and calibration
• Exchangeable front caps included (multiple types)
• USB 2.0 interface; wireless-ready with optional WF-10 streamer

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
Listed values may differ slightly | | * Without front cap | | | Unit = mm
45 | - | 146 | 8.7 | 6.9 | 2.1
50 | - | 135 | 7.8 | 6.3 | 1.8
60 | - | 120 | 6.5 | 5.2 | 1.3
70 | - | 108 | 5.6 | 4.5 | 1.0

Specifications / Technical details

• Lighting: 8 white LEDs, LED on/off switchable
• IR filter: IR cut-filter >650 nm
• Diffuser: Included (N3C-D)
• Emission filter: No
• Polarizer: Integrated (built-in)
• Laser pointer: 656 nm laser diode (Aim Point Laser)
• Magnification: 45 ~ 70x
• Macro zoom: No
• Working distance: Long / Extra Long (see optical data table)
• Lens type: Glass with anti-reflection coating
• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592 x 1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.14 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires WF-10 streamer, optional)
• Housing material: Metal / Aluminum
• Dimensions: 107 mm (L) x 32 mm (D)
• Weight: 140 g
• Cable length: 1.8 m
• Special features: AMR, FLC, APL, microtouch sensor, ESD safe
• Measurement: Yes (extensive measurement functions)
• Calibration: Yes
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: EUR 900.00 - EUR 1000.00
