Digital video microscope AM5216TF

inspectionhand-heldLED

Product

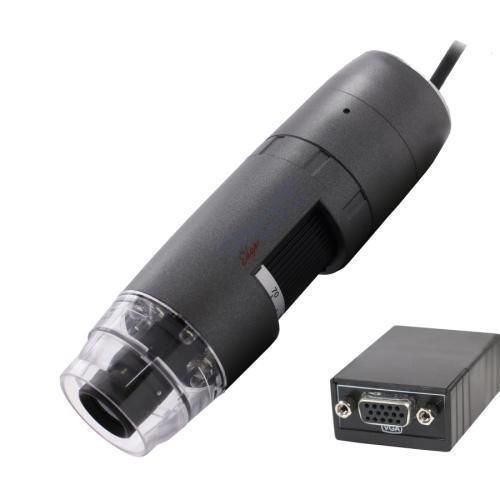

AM5216TF (Dino-Lite) handheld digital inspection microscope with direct VGA (D-Sub) output, designed for industrial visual inspection and failure analysis.

Overview
Built for tasks requiring an extra-long working distance, the AM5216TF provides a minimum viewing distance of 108 mm at maximum 70x magnification. Direct connection to VGA monitors makes it suitable for inspection stations, quality control benches and on-site failure analysis.

Main features

• Extra-long working distance (min. 108 mm at 70x)
• Optical magnification 10x–70x (macro zoom)
• VGA (D-Sub) interface for direct monitor output
• White LEDs (8) with on/off switch
• Microtouch button for image capture/control
• Interchangeable front caps for different applications

Optical Data Table (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 503 | 39.1 | 31.3 | 31.49
20 | 271 | 19.5 | 15.6 | 8.67
30 | 196 | 13.0 | 10.4 | 4.20
40 | 159 | 9.8 | 7.8 | 2.56
50 | 135 | 7.8 | 6.3 | 1.76
60 | 120 | 6.5 | 5.2 | 1.31
70 | 108 | 5.6 | 4.5 | 1.03

Specification summary
Lighting

• Type: White LEDs
• Number: 8
• LED on/off switchable: Yes
• Emission filter / Polarizer: No

Optics

• Magnification: 10x ~ 70x (macro zoom)
• Working distance: Long (min. 108 mm at 70x)
• Lens: Glass with anti-reflection coating

Sensor

• Type: CMOS
• Resolution: 1280 x 720 (720p)
• Maximum frame rate: 60 fps

Compatibility / Interface

• Interface: VGA (D-Sub) — direct connection to VGA monitors

Housing

• Material: Composite / plastic
• Magnification lock: No
• Dimensions: 10.5 cm (H) x 3.2 cm (D)
• Weight: 105 g

Features

• Microtouch sensor: Yes
• Measurement / Calibration: No
• ESD safe: No

Package & warranty

• Contents: Microscope, carry pouch, power adapter, front cover box, user manual
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €519,00 - €719,00
