Digital video microscope AM4115-FUT - EDGE

inspectionlaboratoryhand-held

Overview

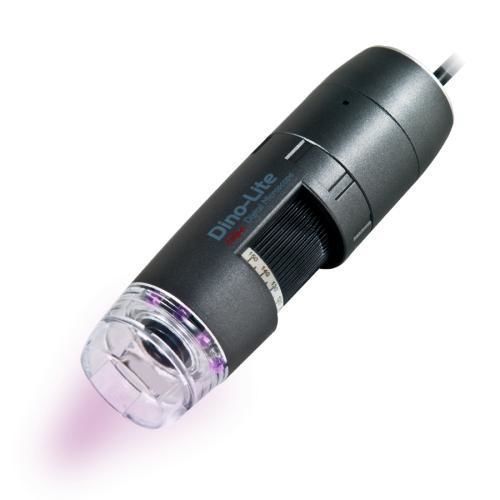

The AM4115-FUT is a USB digital microscope with dedicated UV illumination: LEDs emit around 375 nm. It is designed for inspection tasks where UV excitation or enhanced contrast is required, suitable for industrial inspection and laboratory use. Also available with 390–400 nm LEDs (model AM4115-FVT).

Model family

• Dino-Lite Edge models deliver high image quality and operational flexibility via an adaptable cap system.
• Interchangeable caps allow variation of working distance and lighting configuration for different inspection scenarios.

Optical data
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13.0 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
60 | 9.7 | 6.5 | 5.2 | -
70 | 7.1 | 5.6 | 4.5 | 1.0
80 | 5.5 | 4.9 | 3.9 | -
90 | 4.5 | 4.3 | 3.5 | -
100 | 4.1 | 3.9 | 3.1 | -
110 | 4.0 | 3.6 | 2.8 | -
120 | 4.1 | 3.3 | 2.6 | -
130 | 4.5 | 3.0 | 2.4 | -
140 | 5.0 | 2.8 | 2.2 | -
150 | 5.6 | 2.6 | 2.1 | -
160 | 6.3 | 2.4 | 2.0 | -
170 | 7.1 | 2.3 | 1.8 | -
180 | 8.0 | 2.2 | 1.7 | -
190 | 8.9 | 2.1 | 1.6 | -
200 | 9.9 | 2.0 | 1.6 | -
210 | 10.9 | 1.9 | 1.5 | -
220 | 11.9 | 1.8 | 1.4 | 0.1

Notes
Listed values may differ slightly. Values measured without front cap. Unit = mm.

Specifications

• Lighting — Light / LED type: ~375 nm UV
• Lighting — Number of LEDs: 4
• Lighting — LED on/off switchable: Yes
• Lighting — Infrared filter: IR cut-filter >650 nm
• Lighting — Diffuser available: Yes (N3C-D included)
• Lighting — Emission filter: Emission barrier filter 375 nm
• Lighting — Polarizer: No
• Optics — Magnification: 20x ~ 220x
• Optics — Macro zoom: No
• Optics — Working distance: Standard (see optical data)
• Optics — Lens type: Glass with anti-reflection coating
• Sensor — Sensor type: CMOS
• Sensor — Resolution: 1.3 Megapixel (1280x1024)
• Sensor — Maximum frame rate: 30 fps
• Compatibility — Interface: USB 2.0
• Compatibility — Operating system: Windows 7, 8, 10 & 11; macOS 10.9 and up
• Compatibility — Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Compatibility — Imaging standards: DirectShow, UVC
• Housing — Housing material: Composite / plastic housing
• Housing — Magnification lock: Yes
• Housing — Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Housing — Weight: 100 g
• Housing — Cable length: 1.8 m
• Features — Special feature: No
• Features — Measurement: Yes
• Features — Calibration: Yes
• Features — Microtouch sensor: Yes
• Features — ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-L (Long Cap), N3C-OB (Black Open Cap), N3C-S (Sidelight Cap)
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €500.00 - €700.00
