Optical microscope module AM4917MT-BFCW

inspectionlaboratoryfluorescence

Product description

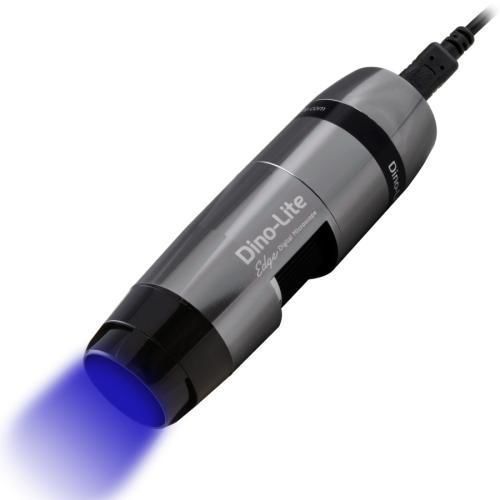

The AM4917MT-BFCW is a fluorescence microscope module designed for laboratory and inspection applications where enhanced depth information and wide-range fluorescence detection are required. It combines a 1.3 MP high-sensitivity CMOS sensor with extended depth-of-field (EDOF) and depth acquisition (DPQ) capabilities to improve in-focus detail across uneven samples.

Main features

• 1.3 Megapixel sensor (1280x960)
• High-sensitivity CMOS sensor, up to 30 fps
• Fluorescence excitation 435 nm; emission filter 475 nm–650 nm (suitable for eCFP, Alexa Fluor 430, Fura Red)
• Switchable white light LED for brightfield/inspection
• Depth Acquisition (DPQ) and Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Readout (AMR)
• Auto and manual refocusing
• Metal housing; magnification lock

Optical data table
Magnification Rate | Working Distance* | Field of View (x) | Field of View (y) | Depth of Field (unit = mm)
20x | 61.4 | 19.53 | 14.65 | 6.35
30x | 34.6 | 13.02 | 9.77 | 3.03
40x | 22.0 | 9.77 | 7.33 | 1.82
50x | 14.9 | 7.81 | 5.86 | 1.24
60x | 10.7 | 6.51 | 4.88 | 0.91
70x | 8.1 | 5.58 | 4.19 | 0.72
80x | 6.5 | 4.88 | 3.66 | 0.60
90x | 5.6 | 4.34 | 3.26 | 0.51
100x | 5.2 | 3.91 | 2.93 | 0.44
110x | 5.0 | 3.55 | 2.66 | 0.39
120x | 5.2 | 3.26 | 2.44 | 0.34
130x | 5.5 | 3.01 | 2.25 | 0.31
140x | 6.0 | 2.79 | 2.09 | 0.28
150x | 6.6 | 2.60 | 1.95 | 0.26
160x | 7.4 | 2.44 | 1.83 | 0.24
170x | 8.2 | 2.30 | 1.72 | 0.22
180x | 9.0 | 2.17 | 1.63 | 0.21
190x | 10.0 | 2.06 | 1.54 | 0.19
200x | 10.9 | 1.95 | 1.47 | 0.18
210x | 11.9 | 1.86 | 1.40 | 0.17
220x | 13.0 | 1.78 | 1.33 | 0.16
(* Without front cap)

Specifications (table extract)
Lighting
Light / LED type: 435 nm excitation + white
Number of LEDs: 7 FL + 1 White
LED on/off switchable: Yes
Infrared filter: No
Diffuser available: No
Emission filter: 475 nm ~ 650 nm
Polarizer: No
Fluorophores: eCFP, Alexa Fluor 430, Fura Red

Optics
Magnification: 20x ~ 220x
Working distance: Standard
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x960)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV

Housing
Housing material: Metal housing
Magnification lock: Yes
Dimensions: 104 mm (H) x 32 mm (D)
Weight: 95 g
Cable length: 1.8 m

Features
Special features: Depth Acquisition (DPQ), Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), Auto and Manual Refocusing, Automatic Magnification Readout (AMR)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes

Information
Package contents: Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap)
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range (indicative): €1,200.00 - €1,400.00
