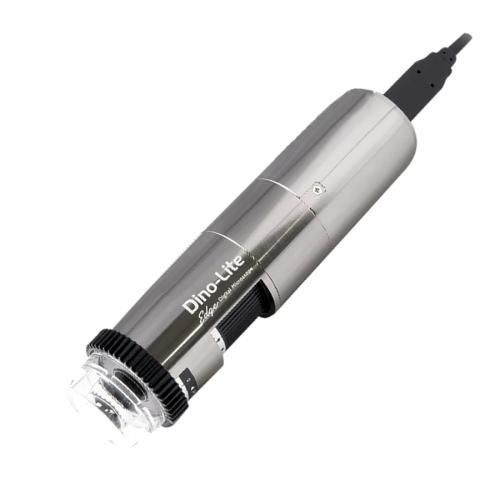

Digital video microscope AM62518MZT

polarizedLEDwith LED light

Product description
The AM62518MZT is a hybrid digital microscope offering 10x–220x magnification with selectable 1080p HDMI output or 2.0 MP USB output. HDMI mode delivers smooth, real‑time high‑definition imaging on an external display; USB mode enables advanced PC workflows using DinoCapture 2.0/3.0 (Windows) or DinoXcope (Mac OS), including AMR, eFLC and EDR.
Note: HDMI and USB modes cannot be used simultaneously.

Main features

• HDMI output (1080p)
• USB‑C output (2.0 MP)
• High‑quality optics, 10x–220x
• Standard working distance
• Adjustable polarizer
• Microtouch control
• Robust metal housing, magnification lock
• 8 white LEDs with Enhanced Flexible LED Control (eFLC)
• Extended Dynamic Range (EDR)
• Automatic Magnification Readout (AMR)

Optical data table
Magnification | Working Distance (mm) | Field of View (X) (mm) | Field of View (Y) (mm) | Depth of Field (mm)
10x | 142.9 | 60.69 | 34.14 | 26.14
20x | 59.9 | 30.35 | 17.07 | 7.05
30x | 33.2 | 20.23 | 11.38 | 3.36
40x | 20.5 | 15.17 | 8.53 | 2.02
50x | 13.5 | 12.14 | 6.83 | 1.38
60x | 9.3 | 10.11 | 5.69 | 1.01
70x | 6.7 | 8.67 | 4.88 | 0.79
80x | 5.1 | 7.59 | 4.27 | 0.64
90x | 4.2 | 6.74 | 3.79 | 0.53
100x | 3.7 | 6.07 | 3.41 | 0.45
110x | 3.6 | 5.52 | 3.10 | 0.39
120x | 3.8 | 5.06 | 2.85 | 0.34
130x | 4.1 | 4.67 | 2.63 | 0.30
140x | 4.6 | 4.34 | 2.44 | 0.27
150x | 5.2 | 4.05 | 2.28 | 0.25
160x | 5.9 | 3.79 | 2.13 | 0.22
170x | 6.7 | 3.57 | 2.01 | 0.21
180x | 7.6 | 3.37 | 1.90 | 0.19
190x | 8.5 | 3.20 | 1.80 | 0.18
200x | 9.5 | 3.03 | 1.71 | 0.16
210x | 10.5 | 2.89 | 1.63 | 0.15
220x | 11.6 | 2.76 | 1.55 | 0.14

Technical specifications

• Lighting: 8 white LEDs; adjustable polarizer
• Optics: Magnification 10x–220x; lens type 1/2.8; standard working distance
• Sensor: CMOS, 2.0 MP (1920 x 1080), up to 60 fps
• Interface: Hybrid switchable HDMI or USB‑C connectivity
• Software: DinoCapture 2.0 / DinoCapture 3.0 (Windows), DinoXcope (Mac OS)
• Housing: Metal housing; dimensions 130 mm (H) x 33 mm (D); weight 120 g; magnification lock
• Cables: Type‑C to Type‑C (1.8 m); Type‑C to Type‑A (1.8 m); Mini‑HDMI to HDMI (1.8 m)
• Special features: eFLC, EDR, AMR; microtouch sensor
• Package contents: Microscope, carry pouch, calibration target, user manual, N3C caps (Close, Diffuser, Opal Diffuser, Extended Open, Long, Open, Sidelight)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Price range: EUR 1000 - EUR 1200
