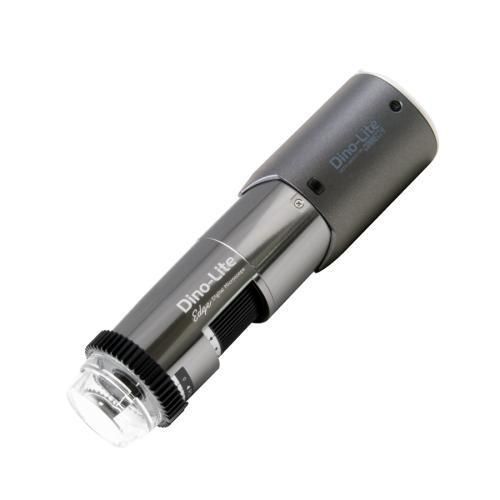

Digital video microscope WF7915MZT

inspectionpolarizedpolarizing

Product overview
The Dino-Lite WF7915MZT is a professional digital microscope combining a 5.0 MP Edge sensor, advanced optics and a metal housing. Designed for inspection, measurement and documentation of reflective or uneven surfaces, it delivers accurate color reproduction and flexible imaging workflows in both cable and wireless configurations.

Key capabilities
EDR (Extended Dynamic Range) stacks exposures to reveal details in dark or bright areas. EDOF (Extended Depth of Field) stacks focus levels to extend usable depth on rough surfaces. Built-in AMR (Automatic Magnification Reading) enables fast, traceable measurements. The adjustable polarizer reduces glare on metal, plastic, glass, jewelry and electronics. EDOF and EDR are available under Windows OS only.

Main features

• 5.0 Megapixel Edge CMOS sensor (2592x1944)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs
• Magnification range: 10x–220x with magnification lock
• Wireless (WiFi) and USB 2.0 connectivity

Optical Data Table (unit = mm)
M | WD | FOV (x) | FOV (y) | DOF
10 | 142.6 | 39.6 | 29.7 | 26.0
20 | 60.1 | 19.8 | 14.8 | 7.0
30 | 33.6 | 13.2 | 9.9 | 3.3
40 | 21.0 | 9.9 | 7.4 | 2.0
50 | 14.0 | 7.9 | 5.9 | 1.4
60 | 9.8 | 6.6 | 4.9 | 1.0
70 | 7.3 | 5.7 | 4.2 | 0.8
80 | 5.7 | 4.9 | 3.7 | 0.6
90 | 4.8 | 4.4 | 3.3 | 0.5
100 | 4.3 | 4.0 | 3.0 | 0.4
110 | 4.2 | 3.6 | 2.7 | 0.4
120 | 4.3 | 3.3 | 2.5 | 0.3
130 | 4.7 | 3.0 | 2.3 | 0.3
140 | 5.2 | 2.8 | 2.1 | 0.3
150 | 5.8 | 2.6 | 2.0 | 0.3
160 | 6.5 | 2.5 | 1.9 | 0.2
170 | 7.3 | 2.3 | 1.8 | 0.2
180 | 8.1 | 2.2 | 1.6 | 0.2
190 | 9.1 | 2.1 | 1.6 | 0.2
200 | 10.0 | 2.0 | 1.5 | 0.2
210 | 11.0 | 1.9 | 1.4 | 0.2
220 | 12.1 | 1.8 | 1.3 | 0.2

Specification tables (summary)
Lighting
White LED, 8 LEDs; LED on/off switchable; IR cut-filter >650 nm; Diffuser included (N3C-D); Polarizer: linear adjustable.

Optics
Magnification: 10x–220x; Macro zoom: No; Working distance: Standard; Lens: glass with anti-reflection coating.

Sensor
CMOS, 5.0 MP (2592x1944); Maximum frame rate: 30 fps.

Compatibility
Interface: USB 2.0; WiFi: Yes; OS: Windows 7/8/10/11 (full features), MacOS 10.11.6+ (cable: limited features). Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS, cable), DinoConnect (wireless).

Housing
Metal housing; Magnification lock: Yes; Dimensions: 105 mm (L) x 32 mm (D); Weight: 137 g; Cable length: 1.8 m.

Features
AMR, EDR, EDOF, FLC; Measurement and calibration support; Microtouch sensor; ESD safe.

Package & Warranty
Includes: microscope, carry pouch, software CD, calibration target, user manual, N3C-O/N3C-C/N3C-D/N3C-E/N3C-L/N3C-S caps. Warranty: 2 years European warranty. Regulatory: CE, FCC, ROHS. Price range: €1500–€1700.
