Digital video microscope AM73915MZT4

inspectionlaboratorypolarizing

Product overview

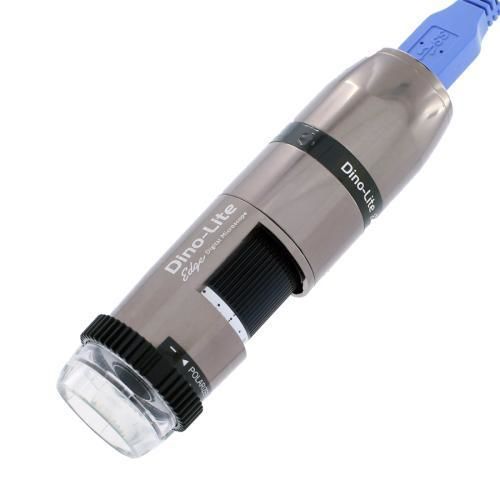

The Dino-Lite Edge 3.0 AM73915MZT4 is a 5.0 MP digital microscope designed for high-magnification inspection (400x–470x). It integrates a linear polarizer, click-to-focus automatic focusing and Extended Depth of Field (EDOF) to assist imaging on uneven surfaces, enabling sharper inspection and measurement for industrial and laboratory applications.

Notes
EDOF, EDR and DPQ functions are available on Windows PCs only. Software compatibility varies by operating system; see specifications for details.

Main features

• Sensor: 5.0 Megapixel (2560 x 1920)
• Magnification range: 400x – 470x
• Click-to-focus automatic focusing and EDOF (focus stacking)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Enhanced Flexible LED Control (eFLC) with 8 white LEDs
• Integrated linear polarizer for reflection reduction
• Metal housing, exchangeable cap, Microtouch sensor, calibration capable

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
400 | 5.68 | 0.977 | 0.732 | 0.041
410 | 6.63 | 0.953 | 0.715 | 0.040
420 | 7.59 | 0.930 | 0.698 | 0.039
430 | 8.55 | 0.909 | 0.681 | 0.038
440 | 9.51 | 0.888 | 0.666 | 0.038
450 | 9.62 | 0.868 | 0.651 | 0.037
460 | 9.56 | 0.849 | 0.637 | 0.036
470 | 9.50 | 0.831 | 0.623 | 0.036

Notes on optical table
* Without front cap. Unit = mm. Listed values may differ slightly.

Specifications

• Lighting
  • LED type: White
  • Number of LEDs: 8
  • Polarizer: Yes, linear (integrated)
• Optics
  • Magnification: 400x ~ 470x
• Sensor
  • Type: CMOS
  • Resolution: 5.0 MP (2560 x 1920)
  • Max frame rate: 15 fps at 5 MP (YUY2, USB 3.0); 45 fps at 1.3 MP (YUY2, USB 3.0); 15 fps at 1.3 MP (YUY2, USB 2.0)
• Compatibility
  • Interface: USB 3.0 (cable included)
  • Operating systems: Windows 7/8/10/11, macOS 10.14 or later (software feature availability varies)
  • Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
  • Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (macOS): PNG, JPEG
  • Supported video formats (macOS): MOV
• Housing
  • Material: Metal
  • Dimensions: 11.9 cm (H) x 3.3 cm (D)
  • Weight: 110 g
• Features
  • Calibration capable
  • Microtouch sensor
• Information
  • Warranty: 2 years European warranty
  • Regulatory approvals: CE, FCC, ROHS
  • Price range (indicative): €1200.00 - €1500.00

Technical characteristics

• Model: AM73915MZT4
• Brand: Dino-Lite
• Sensor resolution: 5.0 MP (2560 x 1920)
• Magnification: 400x – 470x
• Working distance range: ~5.68 mm to 9.62 mm depending on magnification
• Field of view (X x Y): ~0.977 x 0.732 mm (400x) to ~0.831 x 0.623 mm (470x)
• Depth of field: ~0.041 mm (400x) to ~0.036 mm (470x)
• Lighting: 8 white LEDs with integrated linear polarizer
• Interface: USB 3.0 (cable included)
• Housing: Metal; Dimensions: 11.9 cm x 3.3 cm; Weight: 110 g
• Advanced functions: EDOF, EDR, DPQ, AMR, eFLC, click-to-focus (EDOF/EDR/DPQ available on Windows only)
