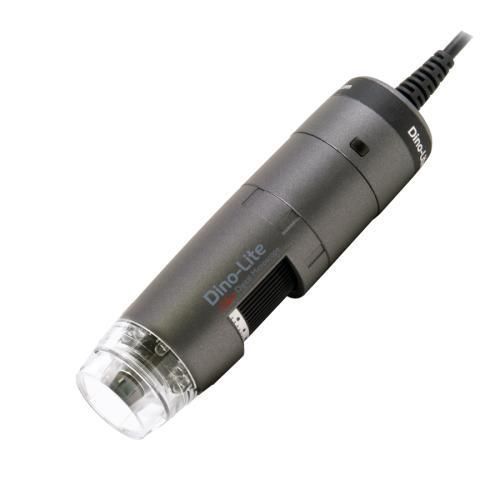

Digital video microscope AF4515T8 - EDGE

inspectionhand-heldportable

Product overview
The Dino-Lite AF4515T8 - EDGE is a high-magnification handheld digital microscope offering 700x–900x magnification and optics capable of resolving details down to 1.5 µm. It provides an extended working distance at high magnification for easier viewing and manipulation of very small components. The device is bundled with DinoCapture 2.0 (Windows) and compatible with DinoXcope (Mac). Handheld operation is possible; a precision stand is recommended for measurements and repeatable inspection.

Optical data
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
700 | 6.6 mm | 0.6 mm | 0.4 mm | -
800 | 6.4 mm | 0.5 mm | 0.4 mm | -
900 | 6.3 mm | 0.4 mm | 0.3 mm | 0.016 mm

Highlights / key features

• Magnification: 700x–900x
• Optical resolution revealing details down to 1.5 µm
• Greater working distance at high magnification for easier component handling
• Automatic Magnification Reading (AMR)
• Measurement and calibration functions included
• Microtouch sensor for user-friendly capture
• Adjustable white LED illumination (8 LEDs)
• Bundled DinoCapture 2.0 (Windows) and compatible with DinoXcope (Mac)

Technical specifications

• Model: AF4515T8 - EDGE
• Lighting — LED type: White
• Lighting — Number of LEDs: 8 (on/off switchable)
• Lighting — IR cut-filter: >650 nm
• Optics — Magnification range: 700x ~ 900x
• Optics — Working distance: See optical data table
• Optics — Lens: Glass with anti-reflection coating
• Sensor — Type: CMOS
• Sensor — Resolution: 1.3 Megapixel (1280x1024)
• Sensor — Max frame rate: 30 fps
• Compatibility — Interface: USB 2.0
• Compatibility — OS: Windows 7, 8, 10 & 11; MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC; Wireless-ready
• Housing — Material: Composite / plastic
• Housing — Dimensions: 10.3 cm (L) x 3.2 cm (D)
• Weight: 100 g; Cable length: 1.8 m
• Features — AMR, measurement, calibration, microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-E (extension cap)
• Warranty: 2 years (European)
• Approvals: CE, FCC, ROHS
• Price range (indicative): €700.00 - €900.00
