Digital video microscope AM73115MZTL

inspectionpolarizedhand-held

Product overview

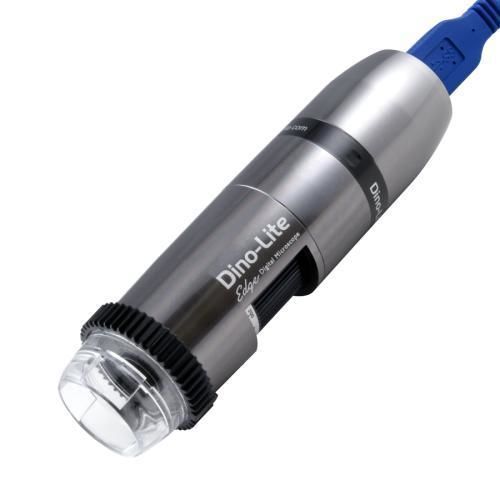

The AM73115MZTL is a USB 3.0 digital microscope for inspection and imaging applications. It combines a 5.0 MP Edge-series sensor with Flexible LED Control (FLC) and an integrated linear polarizer to capture clear, uncompressed images of reflective and non-reflective samples.

Main features

• 5 Megapixel Edge sensor (2560×1920)
• USB 3.0 interface — up to 45 fps (1280×960)
• Magnification range 10×–140×
• Long working distance suitable for inspection and assembly tasks
• Integrated linear polarizer for glare reduction
• Aluminum/metal housing
• Flexible LED Control (FLC) and LED on/off
• Extensive measurement functions and calibration
• Exchangeable front caps (multiple caps included)

Optical data table
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09

Listed values may differ slightly. * Without front cap. Unit = mm.

Additional notes
The device supports real-time high-speed capture via USB 3.0 (max 45 fps at 1280×960; 15 fps at 2560×1920). The integrated polarizer makes the AM73115MZTL well suited for inspecting shiny or reflective items such as metals, plastics, glass, jewelry and electronic components.

Technical specifications

• Model: AM73115MZTL
• Sensor type: CMOS, 5.0 Megapixel (2560×1920)
• Maximum frame rate: 45 fps (note: max ~20 fps video recording)
• Magnification: 10×–140×
• Working distance: long (see optical data table)
• Lens: Glass with anti-reflection coating
• Light / LED type: White, 8 LEDs, LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Yes, linear (integrated)
• Interface: USB 3.0 (cable included; Dino-Lite custom cable)
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC
• WiFi: No
• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 11.9 cm (L) × 3.3 cm (H)
• Weight: 110 g
• Cable length: 1.8 m
• Special features: Flexible LED Control (FLC), Microtouch sensor, ESD safe
• Measurement: Yes; Calibration: Yes
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front covers N3C-O / N3C-C / N3C-D / N3C-E / N3C-L / N3C-S
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
