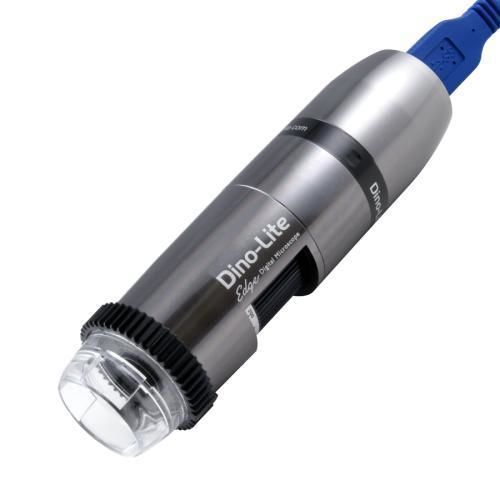

Digital video microscope AM73515MZTL

inspectionLEDwhite light

Overview
The USB 3.0 digital microscope AM73515MZTL combines Dino-Lite Edge optics with Flexible LED Control (FLC) and Automatic Magnification Reading (AMR) to capture high-quality images for professional inspection and measurement workflows.

USB 3.0 / Performance
USB 3.0 SuperSpeed supports up to 5 Gbits/s enabling image transfer up to 45 FPS at 1280 x 960 and improved color fidelity with Edge optics. The AMR function detects and embeds magnification in captured images to simplify measurements and traceability.

Key features

• Magnification range 10x–140x
• 5.0 MP sensor (2560 x 1920)
• Long working distance up to 24 cm
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs, on/off switchable
• Built-in linear polarizer and exchangeable front caps
• Full metal housing, magnification lock, ESD safe
• USB 3.0 interface; compatible with DinoCapture 2.0 and DinoXcope

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09

Specification (selected)

• Brand: Dino-Lite
• Model: AM73515MZTL
• Sensor: CMOS, 5.0 MP (2560 x 1920)
• Magnification: 10x–140x
• Working distance: Long (up to 24 cm)
• LEDs: 8 white, FLC, on/off switchable
• Polarizer: built-in linear
• Lens: glass with anti-reflection coating
• Interface: USB 3.0 (cable included)
• Maximum frame rate: 45 fps (capture), max 20 fps video recording
• Dimensions: 11.9 cm x 3.3 cm; Weight: 110 g; Cable: 1.8 m
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Measurement and calibration functions included
• Warranty: 2 years European warranty; Approvals: CE, FCC, ROHS

Notes
Optical values are listed in mm and measured without front cap. The product is part of the Dino-Lite Edge family and is intended for professional inspection and measurement applications.
