Annealing furnace FMU-19

calcinationheat treatmentsintering

Product Description

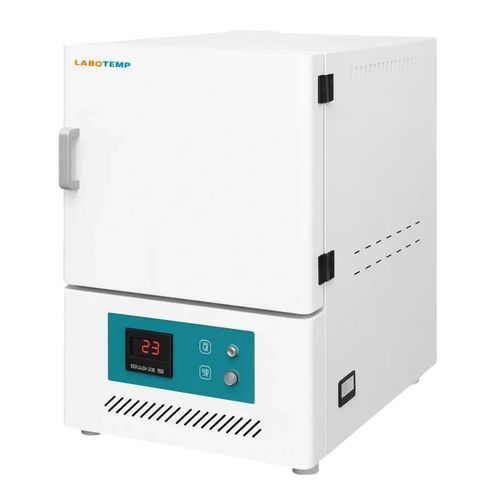

Labotemp Muffle Furnace FMU-19 is an electric laboratory muffle furnace engineered for precise thermal processing, material testing and analytical sample preparation. With a 12 L ceramic-fiber chamber and a temperature range of 100–1200°C, the FMU-19 suits applications such as ashing, sintering, heat treatment and ceramic testing in research, university and industrial quality-control labs. The unit features a micro-computer SX3 programmable temperature controller with 1°C resolution and ±1°C accuracy, an integrated high-precision K-type sensor, and multiple safety protections for reliable, repeatable operation.

Features

• Uniform temperature control via three-side alloy heating (left, right, top)
• Operation up to 1200°C for high-temperature processing
• Ceramic fiber chamber for low heat loss and energy efficiency
• SX3 microprocessor programmable controller: dual display (set/measured), touch-button setting
• High-precision K-type thermocouple for stable measurement
• Rapid heating: time to maximum temperature ≤ 30 minutes
• Safety systems: over-temperature alarm, door safety lock, thermocouple protection
• Electrostatic coated cold-rolled steel exterior for corrosion resistance

Applications

• Material heat treatment: annealing, sintering and thermal processing of metals, ceramics and composites
• Ash content determination for food, polymers, rubber and petroleum samples
• Chemical and elemental analysis: sample preparation and thermal decomposition
• Ceramic and glass testing: firing, melting and thermal stability tests
• Research and quality control in universities, institutes and industrial laboratories

Optional Accessories

• Air inlet
• USB interface
• 5.0-inch true color screen
• Programmable controller with USB data storage

Technical specifications

• Capacity: 12 L
• Temperature range: 100°C – 1200°C
• Temperature resolution: 1°C
• Temperature accuracy: ±1°C
• Heating time to max temp: ≤ 30 minutes
• Heating mode: alloy wire heating on three sides (left, right, top)
• Net / Gross weight: 62 / 68 kg
• Power supply: AC 220V / 50–60 Hz
• Heating element: alloy heating wire
• Power rating: 4.5 kW
• Exhaust port: Ø 30 mm (chimney size 80 × 60 mm)
• Temperature control: SX3 programmable controller
• Temperature setting: touch button setting
• Temperature display: dual display (measured & set)
• Timer: 0–99 h 59 min (programmable)
• Sensor: high-precision K-type sensor
• Chamber material: ceramic fiber
• Outer body: cold-rolled steel with electrostatic coating
• Insulation layer: ceramic fiber
• Inner chamber size: 200 × 300 × 200 mm
• Exterior size: 530 × 785 × 720 mm
• Packing size: 655 × 875 × 865 mm
• Safety protection: over-temperature alarm, door safety lock, thermocouple protection
